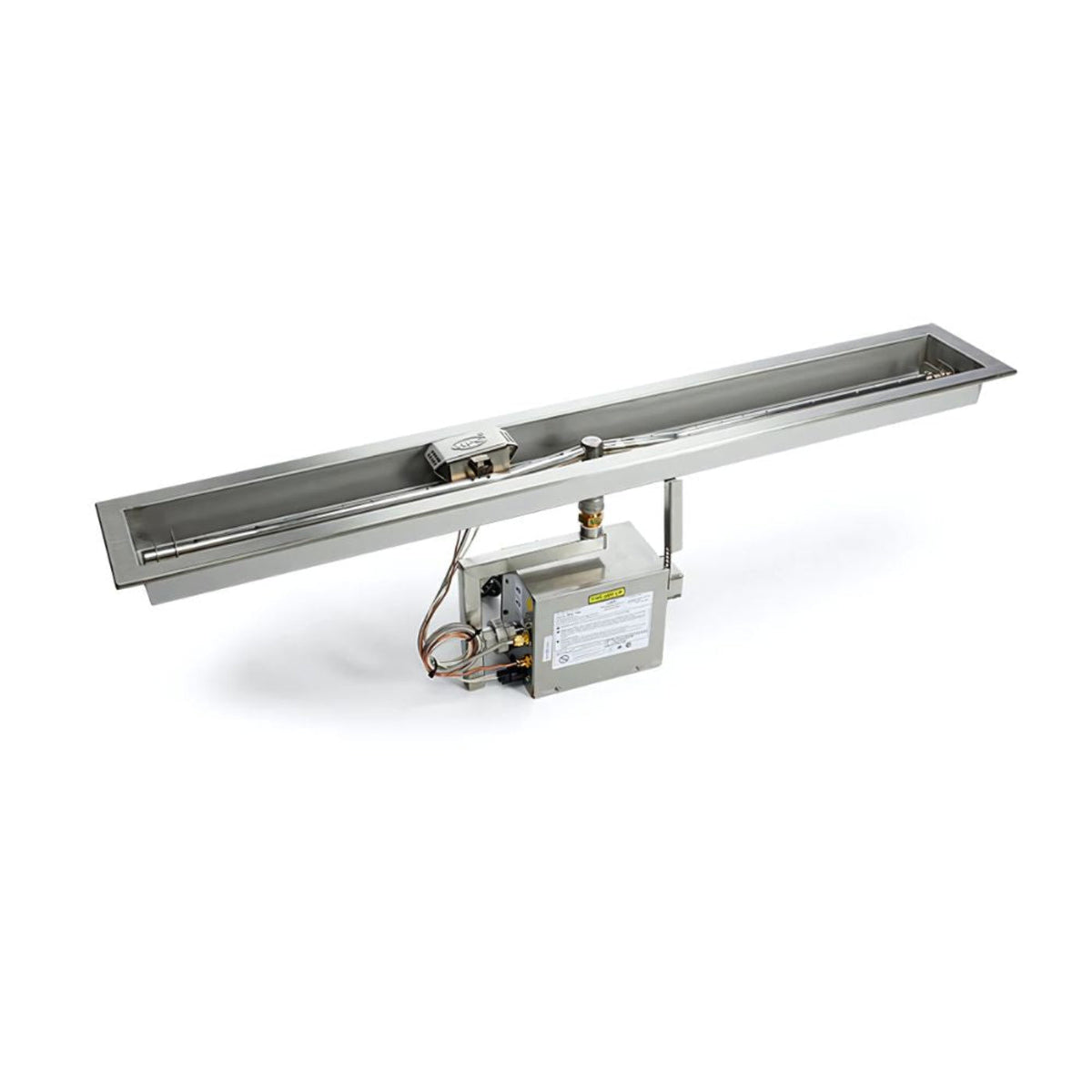

48″ Linear Hot Surface Electronic Ignition System - 48SSEI-TRGH-120VAC-NG

48″ Linear Hot Surface Electronic Ignition System - 48SSEI-TRGH-120VAC-NG

Introducing Our Electronic Ignition Kits

Enhance your fire pit experience with our 48″ Linear Hot Surface Electronic Ignition System.

1. Start Up: This is done by use of a wall switch or remote control. When the ON command is received, the system completes initial safety checks then starts flow of pilot gas. After 5 seconds the hot surface igniter glows igniting pilot flame. When the system confirms pilot flame present, the main burner gas will flow ignited by the pilot flame.
2. Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures / voltages and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing Start sequence.
3. Shut Down: To turn OFF the fire pit simply use wall switch, remote control or whole house system.

Features:

• Fully Assembled- ready to install. Control components are protected within valve box.
• Start via wall switch, remote or whole house system; auto re-light if flame is lost.
• Ignition is complete using a robust and reliable Hot Surface igniter.
• On/Off models: Use with optional wall switch or Remote Control available.
• High/Low Flame Control Models: Adjust high setting to low setting- ~45% turn down (Remote Control included).
• 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
• 24vac Option: Typically used pool side or with other lower voltage requirements.
• Natural Gas or Liquid Propane: Factory built & tested for either fuel.
• Internal temperature monitoring with overheat auto shutoff.
• CSA Certified in US & Canada to ANSI Z21.97-2014 / CSA 2.41-2014 requirements.
• Optional Controls: On/Off Remote, Timers, Power Supplies and an Emergency Shutoff.

On/Off Models: Includes the convenience and safety features- optional remote control available.
High / Low Flame Control Models: This option includes a smart remote control with 2-way communication with the fire pit. Remote allows flame height control while receiving information from fire pit to advise user of fire pit status (flashing LED).
