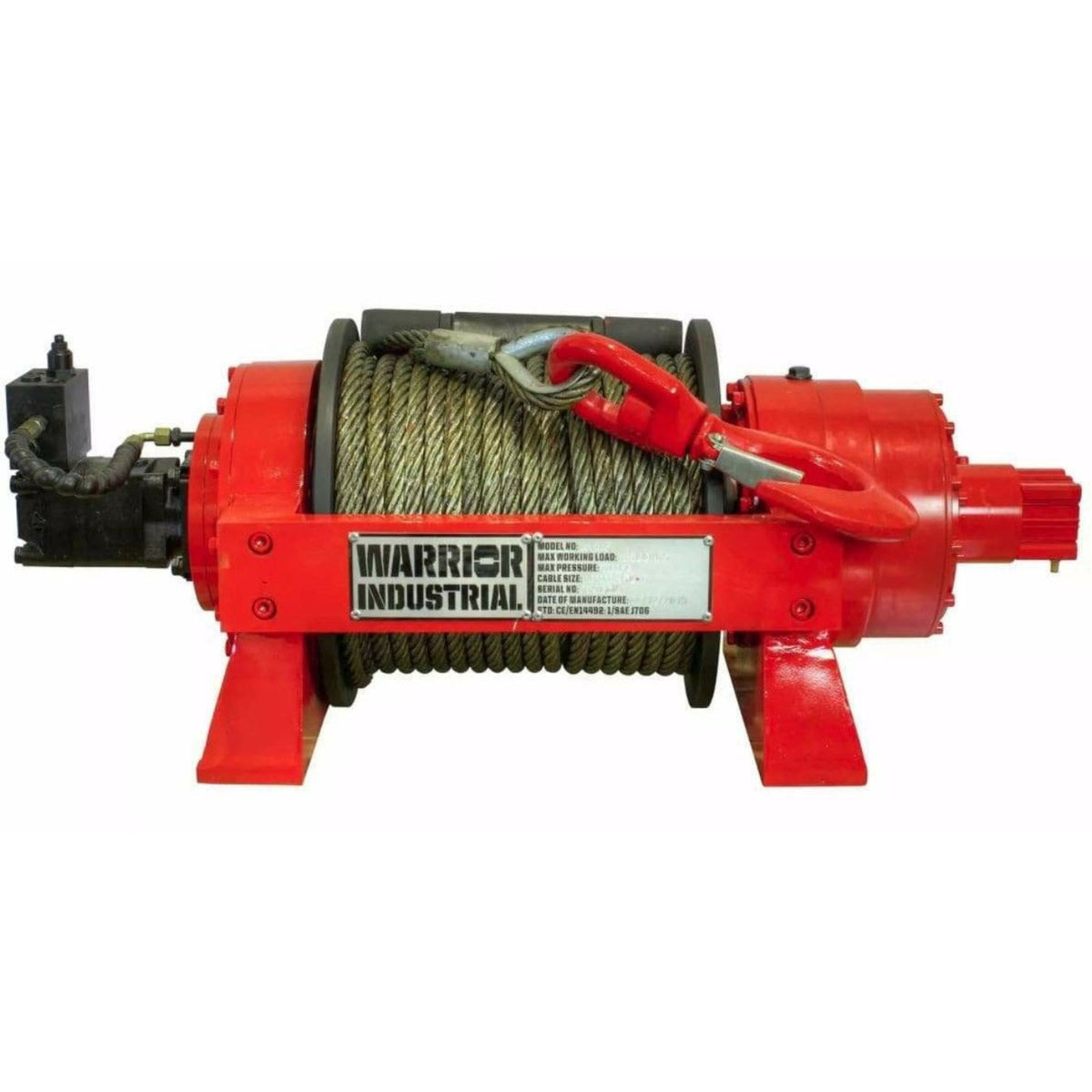

DK2 66,000LB JP Hydraulic Winch
DK2 66,000LB JP Hydraulic Winch
DK2 66,000LB JP HYDRAULIC WINCH
THE JP SERIES WINCHES HAVE BEEN DEVELOPED FOR THE PROFESSIONAL OPERATOR.
BUILT SPECIFICALLY FOR MILITARY USE & ABLE TO WITHSTAND EXTREME CLIMATES AND TEMPERATURES.
These winches have been designed to ensure that as a part of an installation solution they can meet the requirements of EN 14492 : 1. Superb heavy duty winches supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.
Features
-
Full float heavy duty planetary gearing
-
Multi disc friction brake
-
High torque industrial motor
-
Air and manual clutch operation
-
Heavy duty rope tensioner as standard
-
Minimum 10:1 rope/drum ratio
-
Balance valve as standard
Specification
| ITEM NUMBER | 30TJP |
|---|---|
| RATED LINE PULL | 66138 LBS (30000 KG) |
| BRAKING ACTION | AUTO HYDRAULIC |
| DRUM SIZE - DIAMETER x LENGTH | 280 x 360mm (11.02 x 14.17') |
| CABLE - DIAMETER x LENGTH | 32mm x 45m (1.26' x 148') |
| DIMENSIONS | 1301 x 770 x 545mm (51.22 x 30.31 x 21.46') |
| MOUNTING PATTERN | 610 x 170 / 310mm (24 x 6.7 / 12.2') |
| WEIGHT | 570 KG (1256.63 LBS) |
| CERTIFICATION | CE CERTIFIED |
| MAX FLOW L/MIN | 120 |
| WORKING PRESSURE | 17 MPA |
| WORKING ARRESTER PRESSURE | LESS THAN 2.5 MPA |
