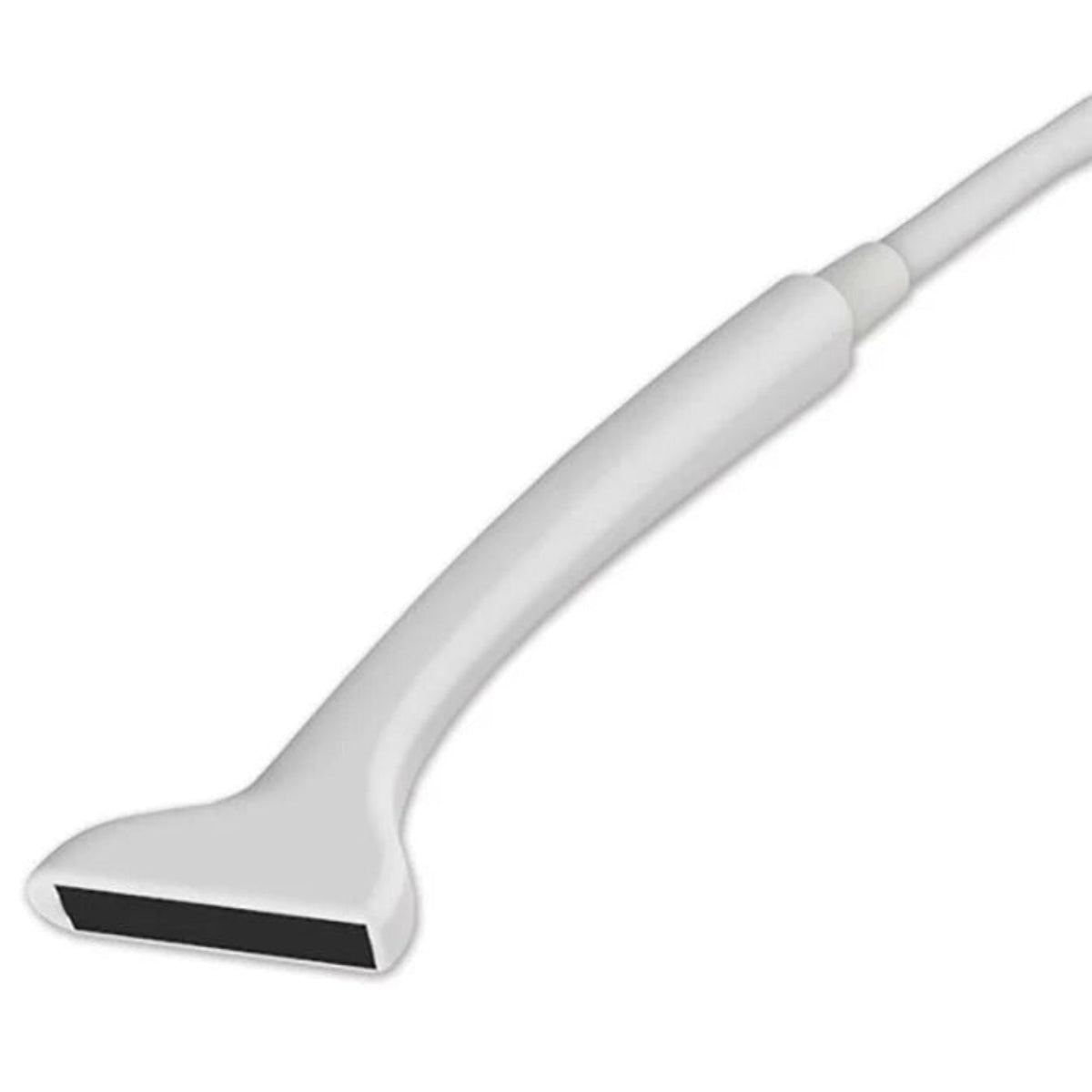

Edan AX7 Compact Linear Array Transducer - EDN-L17-7SQ

Edan AX7 Compact Linear Array Transducer Features

• Transducer transmits and receives ultrasound information.
• Sports a hockey-stick style design.
• Choose from various, selectable fundamental and harmonic frequencies.
• Short footprint makes it perfect for intra-operative and superficial applications like - MSK, nerve block, and vascular access.

Edan AX7 Compact Linear Array Transducer Accessories

The Edan AX7 Compact Linear Array Transducer is commonly purchased with:

• Edan Acclarix AX7 Ultrasound System (#AX7).

What our Experts Think

• High-Resolution Imaging: Operates within a 7–17 MHz frequency range, delivering exceptional detail for superficial structures.

• Versatile Clinical Applications: Ideal for musculoskeletal, nerve block, vascular access, and intra-operative procedures.

• Compact "Hockey-Stick" Design: Ensures enhanced maneuverability in confined or challenging anatomical areas.

• Wide Compatibility: Compatible with Edan Acclarix AX4 and AX7 ultrasound systems, offering seamless integration.

• Durable and Ergonomic: Designed for frequent clinical use, providing comfort and reliability during extended procedures.

Q&A

Q1: What is the Edan L17-7SQ transducer used for?
A: This high-frequency linear array transducer is designed for the Edan Acclarix AX7 ultrasound system, ideal for superficial imaging applications such as musculoskeletal (MSK), nerve block, and vascular access procedures.

Q2: What are its frequency specifications?
A: The transducer operates within a fundamental frequency range of 7.0–14.0 MHz and a harmonic frequency range of 9.0–17.0 MHz, providing excellent resolution for shallow structures.

Q3: What is the design of the transducer?
A: It features a compact, "hockey-stick" style design, enhancing maneuverability in confined or challenging anatomical areas.

Q4: What is the aperture size and element count?
A: The transducer has a 26 mm aperture and 128 elements, optimized for detailed imaging of superficial structures.

Q5: What is the depth range?
A: It is suitable for imaging depths from 10 mm to 110 mm, making it effective for shallow tissue examinations.

Q6: Is it compatible with other Edan systems?
A: Yes, the L17-7SQ transducer is also compatible with Edan Acclarix AX4 and AX2 ultrasound systems, offering versatility across different platforms.

Q7: What are the key applications?
A: The transducer is ideal for intra-operative procedures, musculoskeletal imaging, nerve block guidance, and vascular access, providing high-resolution images for accurate diagnostics.

Maintenance Tips

• Handle gently; avoid dropping or applying excessive force.

• Clean after each use with approved ultrasound cleaners; avoid harsh chemicals.

• Follow manufacturer’s disinfection guidelines; never submerge the connector.

• Inspect cable and probe housing regularly for cracks, frays, or wear.

• Store in a padded holder, away from heat, moisture, and direct sunlight.

• Coil the cable loosely to prevent internal damage.

• Allow probe to reach room temperature before scanning to avoid condensation.

• Disconnect by gripping the connector, not the cable.
