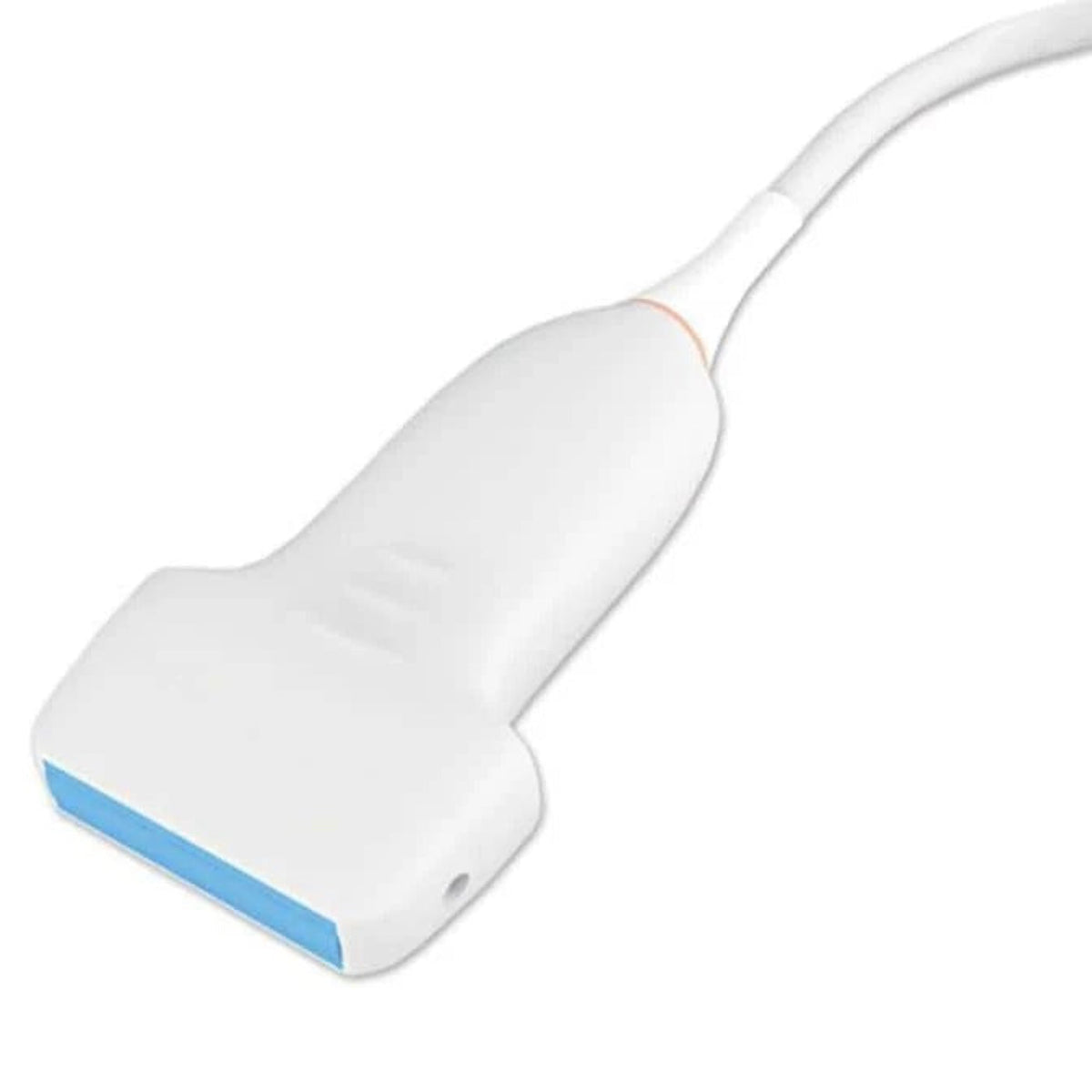

Edan C5-2Q Convex Array Transducer - EDN-C5-2Q

Edan C5-2Q Convex Array Transducer Features

• Transducer transmits and receives ultrasound information.
• Choose from multiple, selectable fundamental and harmonic frequencies.
• Provides high-quality image detail and excellent contrast resolution.
• Capable of penetrating difficult to image patients.
• Suited for abdominal, urology, OB, fetal echo, GYN, nerve, and MSK applications.

Edan C5-2Q Convex Array Transducer Accessories

The Edan C5-2Q Convex Array Transducer is commonly purchased with the:

• #02.01.211006-10: Edan U50 Prime Needle Guide Bracket.

What our Experts Think

• Versatile Imaging Capabilities: The Edan C5-2Q Convex Array Transducer offers a frequency range of 1.5–6.5 MHz (-20dB) and 2–5 MHz (-6dB), providing flexibility for various diagnostic needs.

• High-Quality Imaging: With 128 elements, it delivers excellent image detail and contrast resolution, enhancing diagnostic accuracy.

• Deep Penetration: Capable of imaging depths from 40 to 300 mm, suitable for challenging patients.

• Wide Application Range: Ideal for abdominal, urology, obstetrics, fetal echo, gynecology, nerve, and musculoskeletal imaging.

• System Compatibility: Designed for Edan Acclarix AX series ultrasound systems, including AX2, AX3, AX4, and AX7 models.

Q&A

Q: What is the Edan C5-2Q Convex Array Transducer?
A: A versatile ultrasound probe designed for the Edan system, optimized for abdominal, obstetric, and gynecological imaging.

Q: Who should use it?
A: Ideal for sonographers, clinicians, and healthcare professionals performing diagnostic imaging.

Q: What are its key features?
A: Wide field of view, high-resolution imaging, and excellent penetration for deep-tissue scans.

Q: Is it compatible with Edan ultrasound systems?
A: Yes, it integrates seamlessly with compatible Edan devices.

Q: Is it durable and safe?
A: Yes, built with medical-grade materials for reliable performance and patient safety.

Q: What types of exams is it best for?
A: Abdominal, obstetric, gynecological, and general deep-tissue imaging.

Maintenance Tips

• Regular Cleaning: Gently wipe the transducer's exterior with a soft, lint-free cloth dampened with a mild detergent or 70% isopropyl alcohol. Avoid using abrasive materials or harsh chemicals to prevent damage.

• Proper Storage: When not in use, store the transducer in a clean, dry environment. Ensure it is protected from dust and physical damage to maintain its integrity.

• Avoid Immersion: Do not immerse the transducer connector in any liquid. If the connector becomes wet, rinse it under running water and dry it thoroughly before use.

• Use Compatible Accessories: Always use the specified accessories and coupling gels recommended by the manufacturer to ensure optimal performance and to prevent damage.

• Regular Inspection: Periodically inspect the transducer for any signs of wear or damage. If you notice any issues, consult with a professional technician for servicing.
