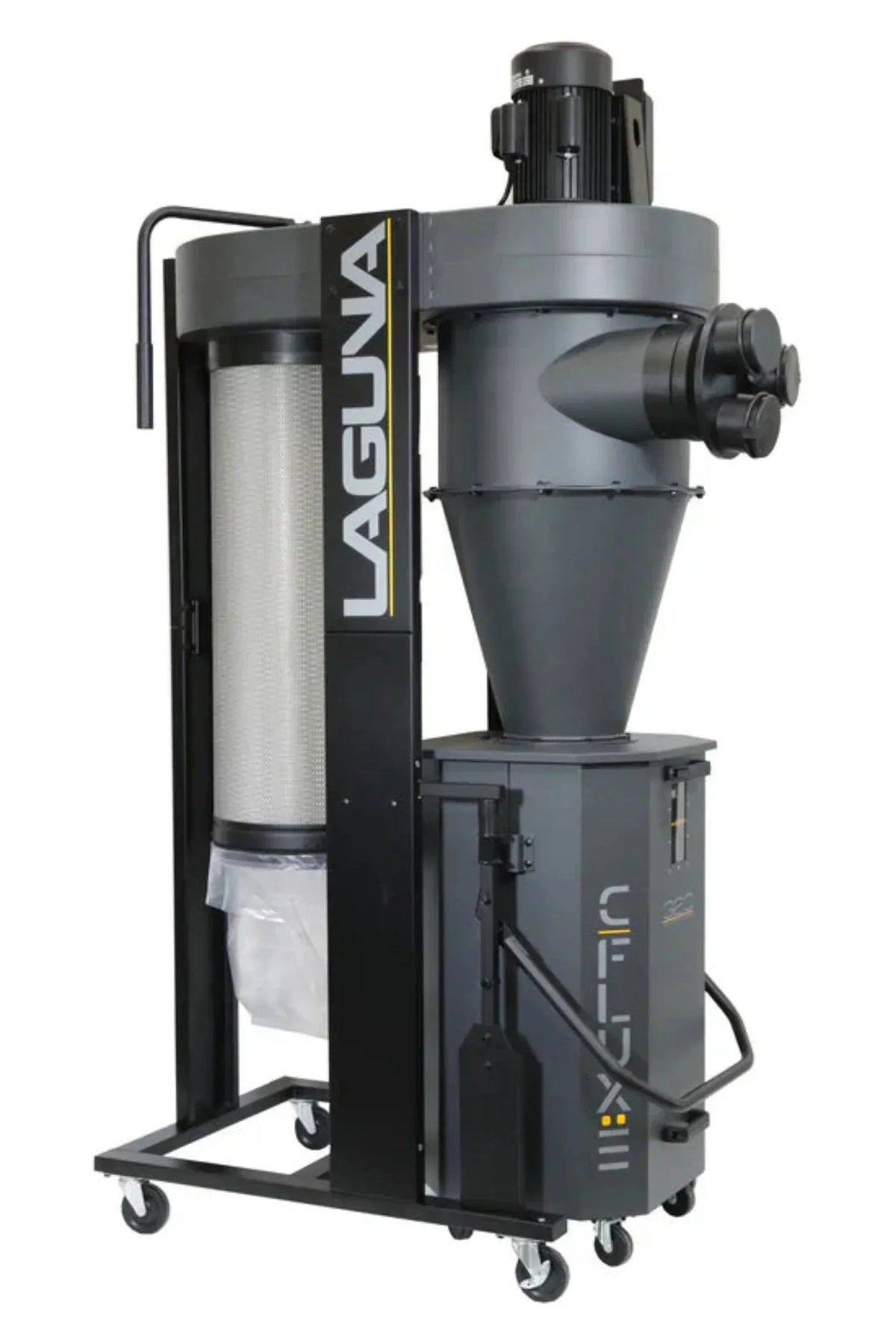

Laguna Tools C-Flux 3 Dust Collector - MDCCF32201
Laguna Tools C-Flux 3 Dust Collector - MDCCF32201
Laguna Tools C-Flux 3 Dust Collector - MDCCF32201
For the popular C|Flux cyclone dust collectors, we’ve kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity. The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the locking casters provide additional stability.
Features
- 3 HP Motor
- 2718 CFM Maximum Air Flow
- 46 Gallon Octagon Drum
Additional Details
- Motor Specs: 3HP
- Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM
- Running AMP: (8″ Inlet) 22A at 220V
- Maximum Air Flow: 2718 CFM (Cubic Feet Per Minute)
- Shop Setting Air Flow*: 1624 CFM
- Max Static Pressure: 11.2″
- Fan Size: 15.5″
- Inlet: 8″ (8″ x 4″ X 3 Ports)
- Remote Control: High Frequency
- Collection Capacity: 46 Gallon Octagon Drum
- Decibel Reading: 88 dB (@9.8ft)
- Assembled Dimensions (L x W x H): 48″ x 28″ x 88″
- Packing Size (L x W x H): 50″ x 31.5″ x 50.6″ (127 x 80 x 128.5 cm)
- Machine Weight: 373 lbs. (169 kg)
- Shipping Weight: 441 lbs. (200 kg)
- Filter Specs
- Filtering Area: 102 sq/ft (9.5 sq/m)
- Cartridge Filter: 1 Micron, 15.74″ x 35.43″ (40 x 90 cm) x 1pc
Video
Manuals
What Our Experts Think
-
High Suction Power: The Laguna Tools C-Flux 3 Dust Collector - MDCCF32201 delivers strong suction with a 3 HP motor, perfect for demanding woodworking shops.
-
Clean Air Performance: Equipped with a 1-micron HEPA filter that captures fine dust for a healthier workspace.
-
Smart Design: The 46-gallon drum with quick-release handle and viewing window makes disposal fast and clean.
-
Durable Build: Solid steel construction and smooth-rolling casters ensure long-lasting, stable operation.
Q&A
Q: What is the motor power?
A: A 3 HP, 220 V single-phase motor powers the unit for maximum airflow.
Q: What type of filtration does it use?
A: A 1-micron pleated filter for high-efficiency dust capture.
Q: How large is the dust drum?
A: The collector includes a 46-gallon steel drum with an easy-lift mechanism.
Q: Is it mobile?
A: Yes, it features locking casters for smooth movement around the shop.
Maintenance Tips
-
Empty drum regularly: Avoid overfilling to maintain suction power.
-
Clean or rotate filter: Use the manual crank to shake off dust buildup.
-
Check seals: Ensure all gaskets and clamps are airtight for peak efficiency.
-
Inspect motor and impeller: Keep blades clean and balanced.
-
Maintain clear ducting: Prevent blockages for consistent airflow.
