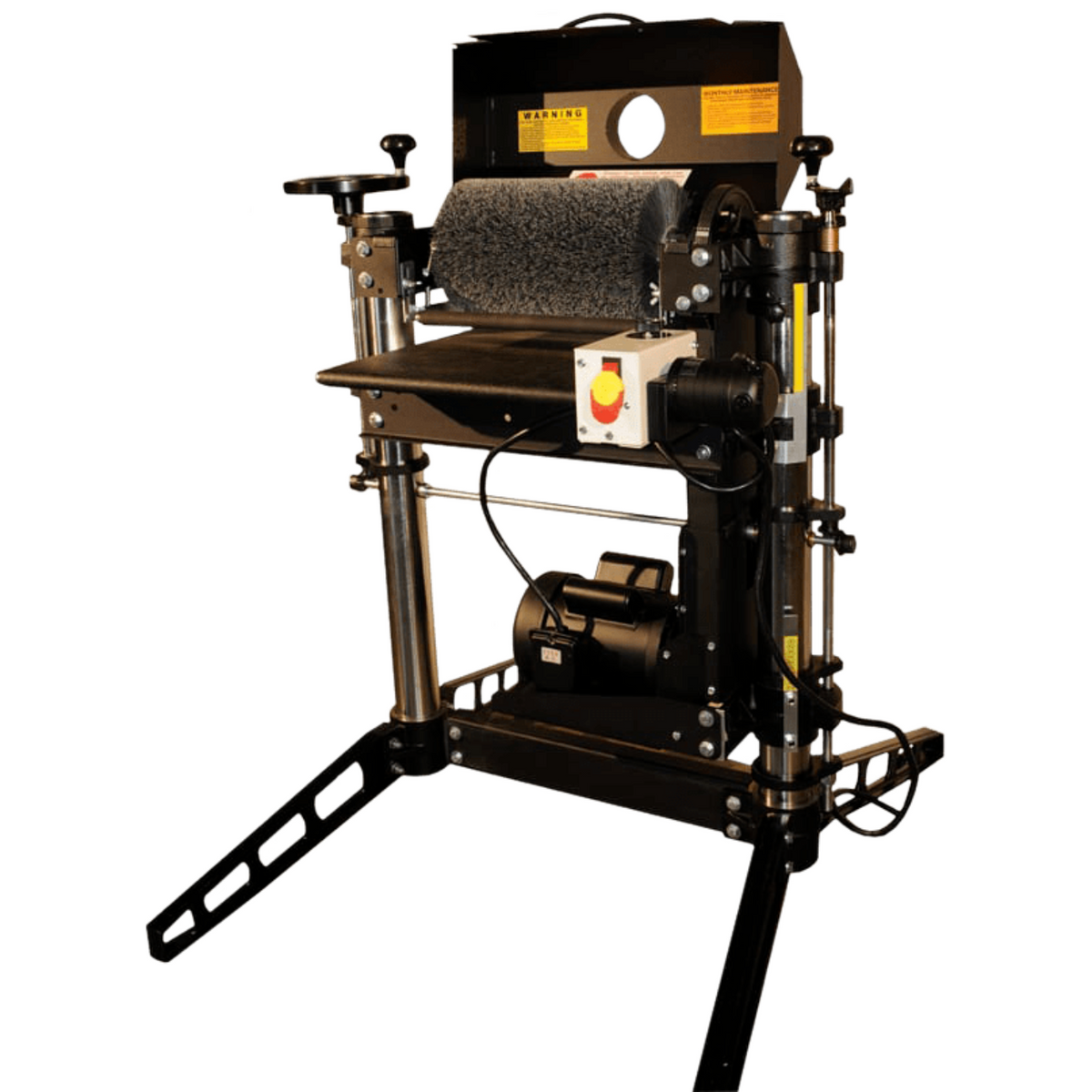

Laguna Tools Classic 13″ Combination Brush/Drum Sander
Laguna Tools Classic 13″ Combination Brush/Drum Sander
Laguna Tools Classic 13″ Combination Brush/Drum Sander
The 13″ Combination Brush/Drum is the answer to your production bottleneck. Developed with moldings in mind, this versatile sander can tackle every step in your finishing process, from sanding raw wood to sanding in between coats of stain or primer. Read about other applications below.
This model features a 1-3/4 HP motor, and can handle stock up to 4″ thick, or as thin as 1/32″. It can also be equipped with an optional sanding drum for surface sanding.
Features
- Infinitely variable brush speed and conveyor feed rate
- Optional Drum for surface sanding
- Quickly change brush heads or abrasive loadings
- Fully adjustable tension rollers prevent stock slippage
- Reinforced steel conveyor bed with a poly conveyor belt
- Precision height adjustment
- Bristle Contact Gauge included
Sanding Capacity
- Maximum Width: 13″
- Minimum Length: 9″
- Maximum Thickness: 4″, varies with drum/brush style
- Minimum Thickness: 1/32″
- Dimensions (W x L x H): 42″ x 35″ x 44″
- Drum: 5″ x 13″ Extruded Aluminum
- Brush: 6-8″ Typical Diameter
- Speed: Ranged Variable RPM, 400-1200
- Dust Hood: 1-4″ Port, Hinged At Back, 600 CFM Min. Recommended
- Conveyor Motor: 43 in.-lb. Torque, Ranged Variable, 0-10 FPM
- Drive Motor (TEFC): 1-¾ HP
- Power Requirements: 110 Volt, 20 Amp Service
- Shipping Weight: 300 lbs. (Approx, Varies Based On How Equipped)
- Shipping Dimensions (L x W x H): 34-½″ x 45-½″ x 46-½″
What Our Experts Think
-
Versatile finishing machine: handles both brush and optional drum sanding in one unit — ideal for raw wood, between coats, or wire-brushing textures.
-
Good capacity for small shop production: accepts boards up to 13″ wide, and up to 4″ thick with the appropriate head.
-
Variable speed control: both the brush RPM (approx. 400-1,200) and conveyor feed rate (0-10 fpm) are infinitely adjustable for precision finishes.
-
Compact footprint, professional build: strong steel conveyor bed, poly belt, and precise height adjustment make it shop-ready.
-
Optimizes workflow: quickly change brush heads or abrasive loadings and reduce bottlenecks in finishing operations.
Q&A
Q: What is the maximum width this machine can handle?
A: Up to 13″ wide stock.
Q: How thick can the stock be?
A: Up to about 4″ thick (depending on whether using brush or drum).
Q: What is the minimum thickness it can handle?
A: As thin as 1/32″.
Q: What are the speed ranges?
A: Brush speed varies from ~400-1,200 RPM; conveyor feed 0-10 fpm.
Q: What power does it require?
A: Uses a 1.75 HP drive motor, standard 110 V / single-phase service.
Maintenance Tips
-
Clean belt and conveyor bed regularly: Remove dust, resin and debris from belt and bed to maintain flat feeding and consistent results.
-
Check brush or drum head condition: Inspect bristles or drum surface for wear or damage—replace when uneven finish or vibration appears.
-
Lubricate adjustment mechanisms: Keep height adjuster and tension rollers free-moving; apply light oil periodically.
-
Verify conveyor tension & tracking: Ensure the poly belt remains well-aligned and tensioned for stable feeding.
-
Maintain dust extraction port: Clear the 1-4″ dust hood and keep airflow at recommended minimum (~600 CFM) to reduce heat, resin buildup and extend life.
