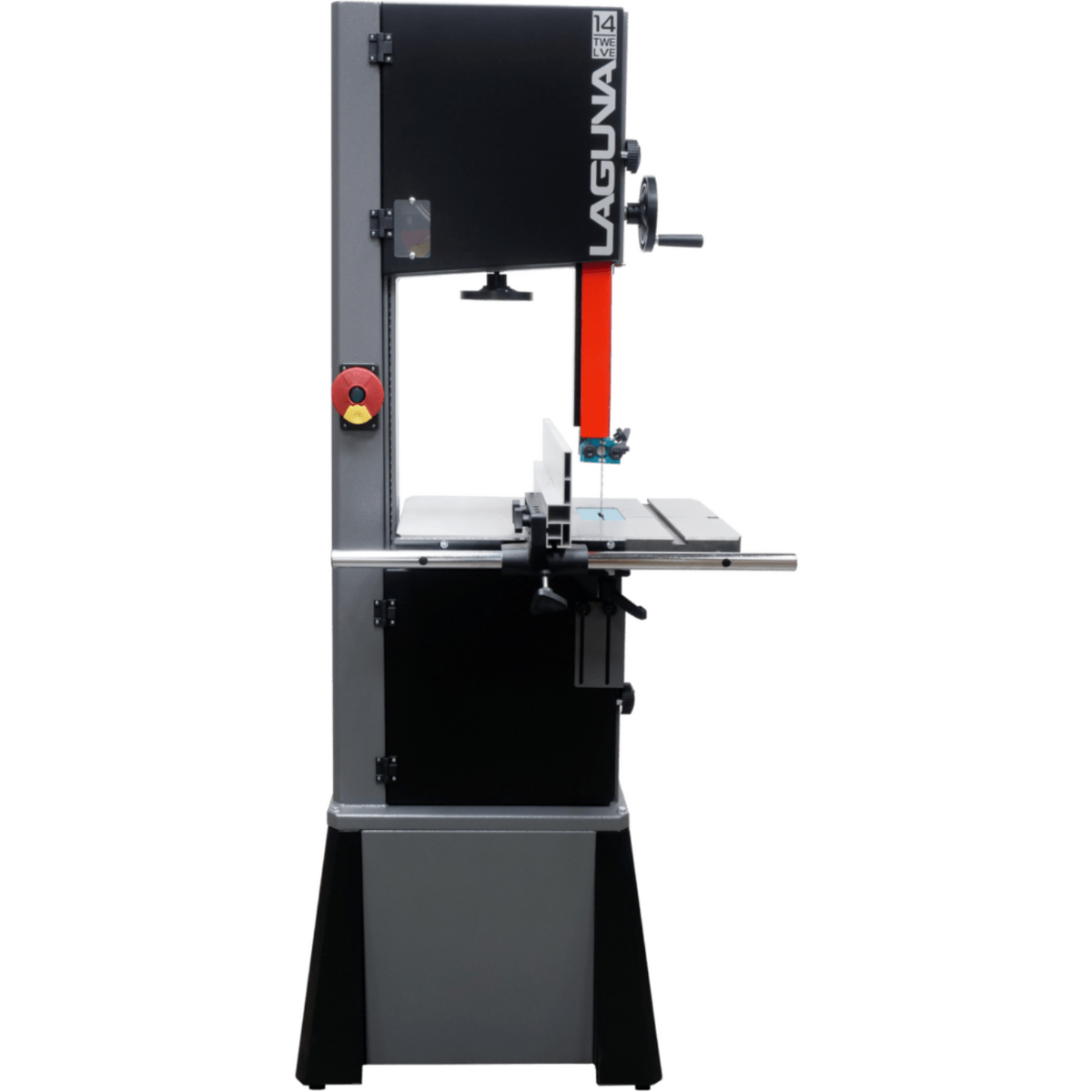

Laguna Tools Classic Bandsaw - 14|12 Bandsaw - MBAND1412-175
Laguna Tools Classic Bandsaw - 14|12 Bandsaw - MBAND1412-175
Laguna Tools Classic Bandsaw - 14|12 Bandsaw - MBAND1412-175
The 14|12 Bandsaw is a 110 Volt saw that feels like a 220. Features include pyramid shaped spine, 1 ¾ HP TEFC Motor, quick release tension, 115 volt outlet and micro polished 21″ x 16″ table mounted onto oversized Trunion paired with Aluminum Hi/Low Fence. Solid Cast
Wheels are electronically, dynamically balanced & fitted with polyurethane one-piece tires designed to run cooler & last longer than conventional tires. The worm gear & pinion is ultra-smooth and engineered to have minimum flex even when fully extended. This is a trade mark of Laguna, just like the famous ceramic Laguna guides. Double windows allows you to check both tension & tracking while the machine is running.
Features
- Laguna Guides
- 4″ Dust Port
- Table Height: 38″
- 110 Volt Outlet
- Tension Window
- Tension Indicator
- Tracking Window
- Cast Iron Wheels
Specifications
- Table Tilt Right: 45°
- Table Tilt Left: 7°
- Positive Stop: 90°
- Table Size: 21-½″ x 16″
- Quick-Release Tension
- Rack & Pinion Upper Guide
- Heavy Duty Cast Trunion: 8″ x 13″
- Included: 6ft Cord With Plug
- Nema: 5-15P
- Premium Anodized Aluminum Throat Plate
- Hi/Low Aluminum Fence: 18″ x 5-½″ x ½″
- Dual Voltage Motor: 115/230, Pre-Wired 115 Volt
- Motor: 14/7 Amp TEFC
- HP:1-¾, 115/230V
- Safety Key
- 12″ Resaw
- Stand Included
- Blade Length: 115″
- Min Blade Width: ⅛″
- Max Blade Width: ¾″
- Illuminated On/Off Switch
- Shipping Weight: 350lbs
- Shipping Dimensions (L x W x H): 55in x 22in x 25in
Video
Manuals
What Our Experts Think
-
Precision and Power Combined: The Laguna 14|12 Bandsaw delivers smooth, accurate cuts powered by a robust 1.75 HP TEFC motor—ideal for both hardwoods and resawing.
-
Solid Construction: Cast-iron wheels, trunnion, and table provide exceptional stability and vibration-free performance.
-
High Resaw Capacity: With 12″ of resaw height and a 13-5/8″ throat, it handles thick lumber and wide stock effortlessly.
-
Smart Design: Features tool-less ceramic guides, dual 4″ dust ports, and a quick-release blade tension lever for convenience.
-
Shop-Ready Build: Runs on 115 V or 230 V, offering professional capability in a home or small-shop footprint.
Q&A
Q: What is the resaw capacity of the 14|12 Bandsaw?
A: It offers a full 12″ resaw height—perfect for cutting large boards or veneers.
Q: What motor does it use?
A: A 1.75 HP TEFC motor that delivers consistent torque for all woodworking tasks.
Q: Does it include ceramic blade guides?
A: Yes, tool-less ceramic guides ensure accuracy and long blade life.
Q: Can it run on household power?
A: Yes, it operates on standard 115 V power and can be converted to 230 V if needed.
Maintenance Tips
-
Clean the Table and Guides: Wipe down after each session to remove pitch and dust.
-
Check Blade Tension and Tracking: Adjust before each use to ensure straight, accurate cuts.
-
Lubricate Bearings and Pivots: Lightly oil monthly to maintain smooth operation.
-
Inspect Tires and Blade Condition: Replace worn parts to prevent drift and improve finish quality.
-
Maintain Dust Ports: Keep both 4″ ports clear for effective dust extraction and motor protection.
