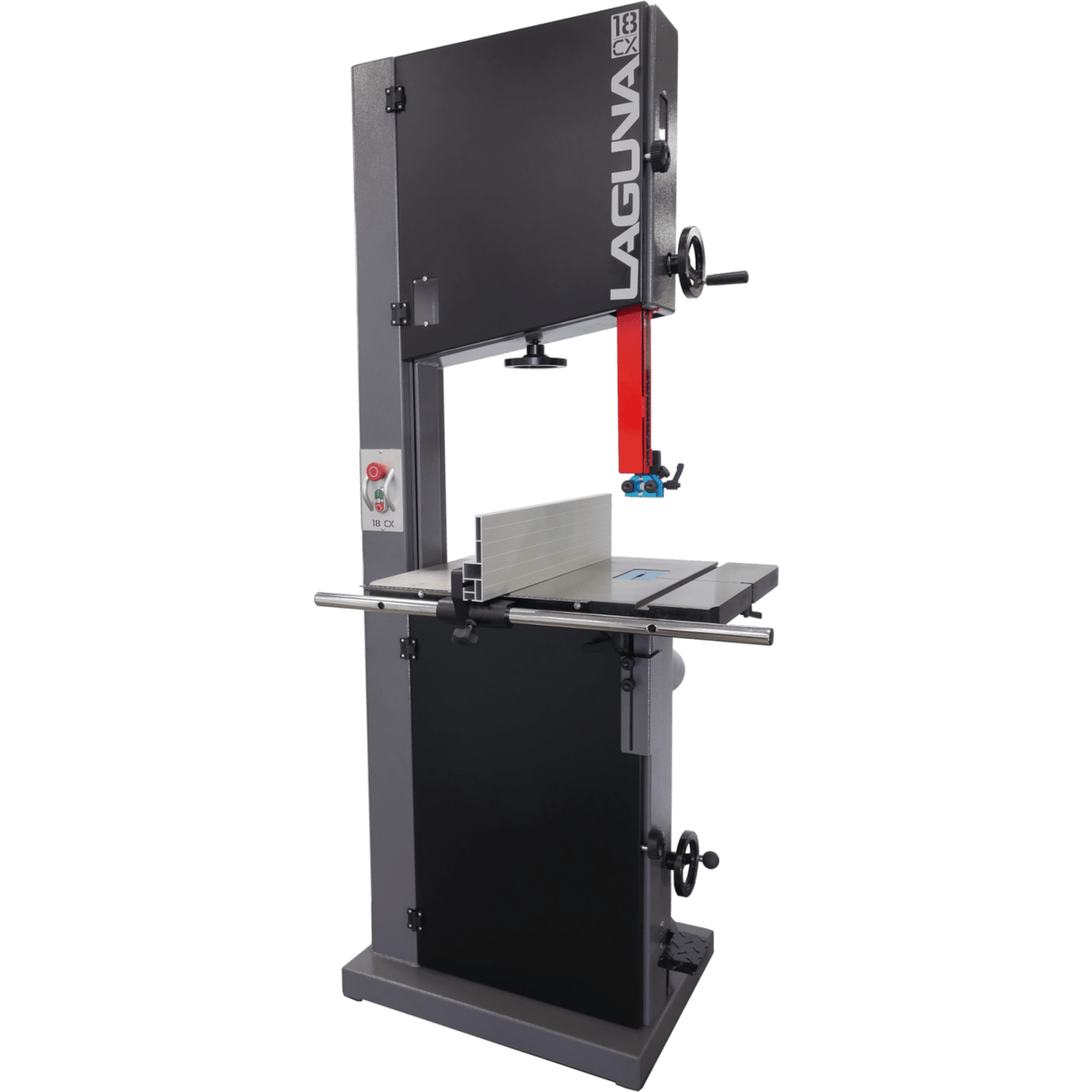

Laguna Tools Classic Bandsaw 18|CX - MBAND18CX110175
Laguna Tools Classic Bandsaw 18|CX - MBAND18CX110175
Laguna Tools Classic Bandsaw 18|CX - MBAND18CX110175
The 18|CX Bandsaw follows in the traditions of high-performance and reliability to be expected from a Laguna Tools Bandsaw. The 18|CX is built with a 1.75HP, 110V motor and features variable speed control to cut through metals and wood with ease.
Features
- Motor: 1.75HP, 100V, 14/7 Amp.
- Recommended Breaker: 20 Amp.
- Magnetic Starter
- Min-Max Blade Width: 1/8″ – 1-1/4″
- Resaw Capacity: 16″
- Throat: 18-7/32″
- Blade Length: 145″
Specifications
- Disc-Brake With Micro Switch
- 110V Outlet On Back For Light
- Window For Tension
- Window For Tracking
- Magnetic Blade Tension Guide
- Worm Gear & Pinion Upper Guide
- 10 Point Laguna Ceramic Guides
- Mechanical Variable Speed Drive
- Low Blade Speed: 100-290 FPM
- High Speed Blade: 1200-3500 FPM
- Anodized Insert With Micro Adjustment
- Dynamically Balanced Cast Iron Wheels
- Urethane Single Piece Snap-On Tire
- Cast Table Size: 20″ x 26″
- Table Tilt: 6°, +45°
- Quick-Release Tension
- Hi/Low Anodized Aluminum Fence: 22-¾″ x 7-¼″ x 11/16″
- Table Height: 38″
- Dust Ports: 4″ x 2
- Overall Height: 77-¾″
- Dimensions (Base): 27″ x 20″
- Dimensions (Overall): 38″ x 36″
- Dimensions (Box): 82″ x 34″ x 36″
- Weight (Net/Ship): 480/545 lbs
- Shipping Dimensions (L x W x H): 55″ x 22″ x 25″
18BX & 18CX Wheel System
- Foot Operated
- 360° Omni-Directional
- Rubber-Coated Wheels
- Adjustable Rubber Pads
- Oilite Bronze Bushing Allows For Less Friction & Longer Life
- Easy Install With No Drilling Required
- Pedal Raises & Lowers Front Wheel
- Wheels Mounted Outside Frame To Maximize Stability
18BX & 18CX Pro Light
- Swivels 220°
- 12 Volt/50 Watt
- Tilts Vertically 320°
- Built-In Transformer
- Independent On/Off
- Ribbed Aluminum Case
- Halogen Hi-Intensity Light
- Bright, Glare-Free Flood Light
- Designed For Even Light Distribution
- Reinforced Glass, Dust-proof Design
- Top & Side Cabinet Mounting
Video
Manuals
What Our Experts Think
-
Powerful & Versatile: The 1.75 HP, 110 V motor delivers reliable performance for cutting both hardwoods and light metals.
-
Generous Capacity: With a 16″ resaw height and 18″ throat, it easily handles large boards and deep cuts.
-
Precision Cutting: Features a 20″ × 26″ cast-iron table, ceramic blade guides, and balanced wheels for smooth, accurate results.
-
Adjustable & User-Friendly: Quick-release blade tension, dual 4″ dust ports, and table tilt up to +45° enhance ease of use.
-
Durable Construction: Heavy-duty steel frame minimizes vibration and ensures long-term shop reliability.
Q&A
Q: What motor power does it have?
A: It comes with a 1.75 HP motor running on 110 V single-phase power.
Q: What is the resaw and throat capacity?
A: Resaw capacity is 16″ and throat capacity is approximately 18″.
Q: What are the blade speed ranges?
A: Variable speed ranges from approximately 100–290 FPM (low) to 1,200–3,500 FPM (high).
Q: How large is the table and how far can it tilt?
A: The table measures 20″ × 26″, and it tilts up to +45° for angled cuts.
Maintenance Tips
-
Clean Regularly: Clear dust and debris from table, guides, and cabinet after each use.
-
Check Blade Tracking: Verify blade alignment and tracking before operation to ensure straight cuts.
-
Lubricate Moving Parts: Oil pivot points, bearings, and tension mechanisms periodically.
-
Inspect Belts and Wheels: Look for wear or damage to maintain smooth and balanced cutting.
-
Keep Dust Ports Clear: Maintain airflow through both dust ports for efficient collection and motor cooling.
