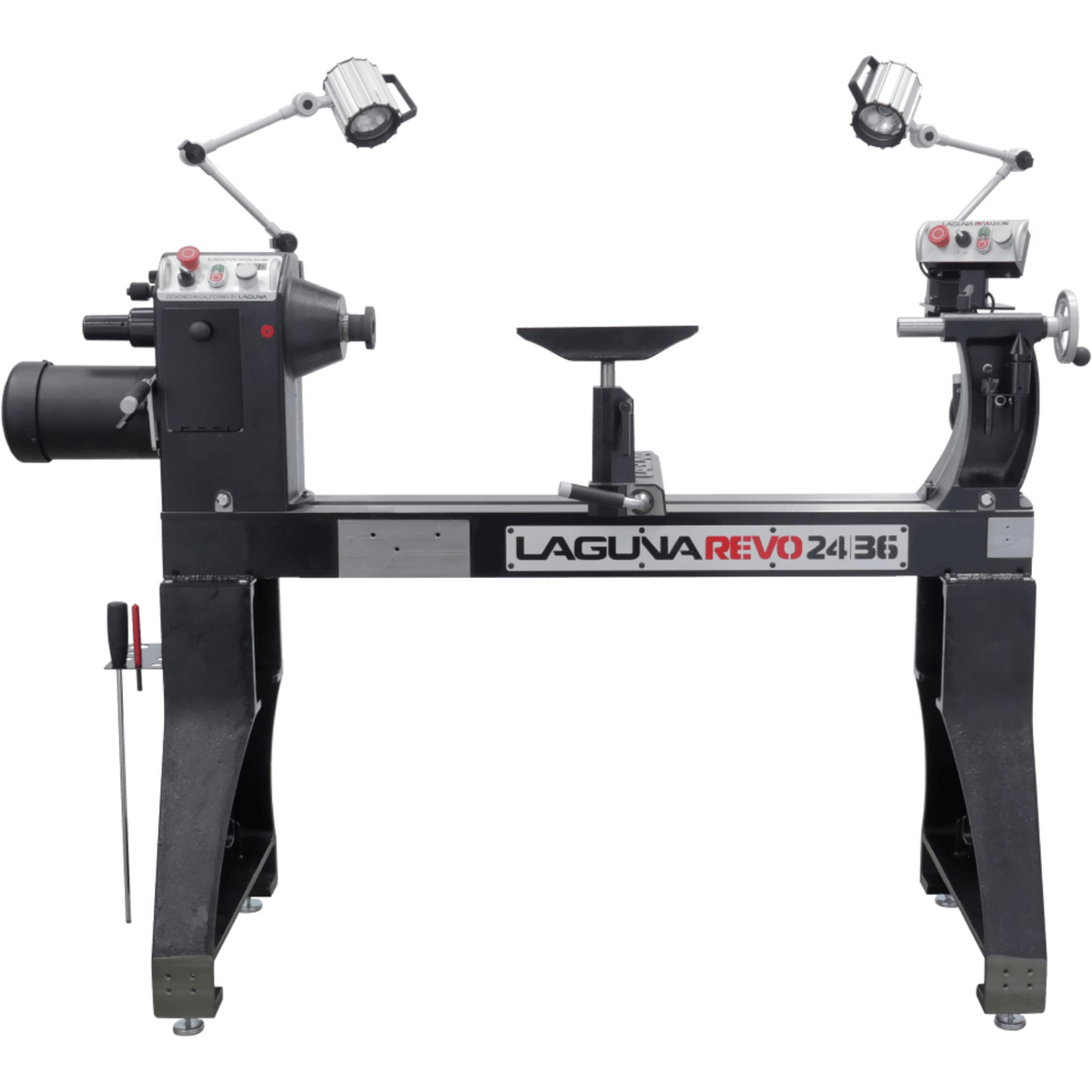

Laguna Tools Classic Lathe, 220 Volt, Revo 24|36 - MLAREVO 2436-220
Laguna Tools Classic Lathe, 220 Volt, Revo 24|36 - MLAREVO 2436-220
Laguna Tools Classic Lathe, 220 Volt, Revo 24|36 - MLAREVO 2436-220
Wall Thickness of legs on the Revo 24|36 is 80% heavier compared to the Revo 18|36.
Redesigned banjo features a more compact design, 45° cutout & wider base.
Having a second control panel that mounts in two positions (high or low) sets the Revo 24|36 apart from any other lathe in the world, not only can you turn off the machine from this control panel, but it allows the operator to change speed as well. A switch on the back of the headstock designates whether you control the Revo from the headstock control panel or the corresponding control panel. The E Stop works on both at any given time.
And YES, this amazing control panel comes standard with the Revo 24|36
Features
- Motor: Induction, 1725 RPM, 3HP, 220V, 60Hz
- Phase: 1-Phase Input, 3-Phase Output
- VFD: Delta S1 Variable Frequency Drive
Specifications
- Recommended Breaker Size: 30 Amp
- Remote Control Box With Speed Settings
- Two Ergonomic Control Panel Positions: High/Low
- Drive Belt: Poly-Groove With EZ Access
- Tailstock Quill: 4-½″, Engraved, Self-Ejecting
- Floor Top Spindle Center: 44-½″
- Front Bearing: TPI Taiwan 6307LLU
- Rear Bearing: TPI Taiwan 6205LLU
- Spindle Index #: 14/36/48 with Lock
- Distance Between Centers: 36″
- Headstock Through-Bore: ⅜″
- Tailstock Storage Of Centers
- Toolrest Post Size: 1″
- Spindle Size: 1-¼″ x 8 TPI RH
- Floor To Bed: 32-½″ with Pads
- Spring Loaded Spindle Lock
- Max Outboard Swing: 38″
- Swing Over Banjo: 19-¾″
- Accepts Vacuum Chuck: Yes
- Face Plate: 3″ Diameter
- Tool Rest: 12″
- Steel Bed: ASTM A36
- Headstock Spindle: MT2 Taper Hardened To 40° HRC
- Tailstock Quill: MT2 taper hardened to 40° HRC
- Swing Over Bed: 24″
- RPM High: 135-3500
- RPM Low: 50-1300
- Dimensions (W x D x H): 60″ x 26″ x 52-¼″
- Shipping Weight: 610 lbs
- Shipping Dimensions (L x W x H): 36″ x 40″ x 50″
Modifications
Video
Manual
What Our Experts Think
-
Heavy-Duty Performance: The Revo 24|36 is engineered for serious turners, featuring a robust cast-iron bed and a powerful 3 HP, 220 V motor for exceptional torque.
-
Smooth Variable Speed: The electronic variable speed control (50–3,500 RPM) provides unmatched precision for both delicate detail work and large-diameter turning.
-
Exceptional Stability: The solid steel and cast-iron construction minimizes vibration, ensuring superior surface finish and control.
-
User-Focused Design: Includes ergonomic controls, digital speed readout, and forward/reverse function for maximum versatility.
-
Professional Capacity: Handles workpieces up to 24″ in diameter and 36″ between centers—perfect for bowls, spindles, and large projects.
Q&A
Q: What is the swing capacity of the Revo 24|36?
A: It offers a 24″ swing over the bed and 36″ between centers.
Q: What kind of motor does it use?
A: A 3 HP, 220-volt motor providing smooth, consistent torque across all speeds.
Q: Is the speed adjustable?
A: Yes, variable speed ranges from 50 RPM to 3,500 RPM with an electronic inverter for precise control.
Q: Does it include reverse operation?
A: Yes, the Revo 24|36 allows both forward and reverse rotation for sanding and finishing flexibility.
Maintenance Tips
-
Clean the Bed & Tool Rest: Wipe surfaces after each use and apply light oil to prevent rust.
-
Inspect the Belt & Pulley System: Check for wear or looseness to maintain smooth speed transitions.
-
Lubricate Bearings & Tailstock: Keep all sliding and rotating parts lightly oiled for durability.
-
Check Alignment: Periodically verify headstock and tailstock alignment for accurate turning.
-
Keep Dust Under Control: Use dust collection and clean regularly to prevent buildup around electronics and controls.
