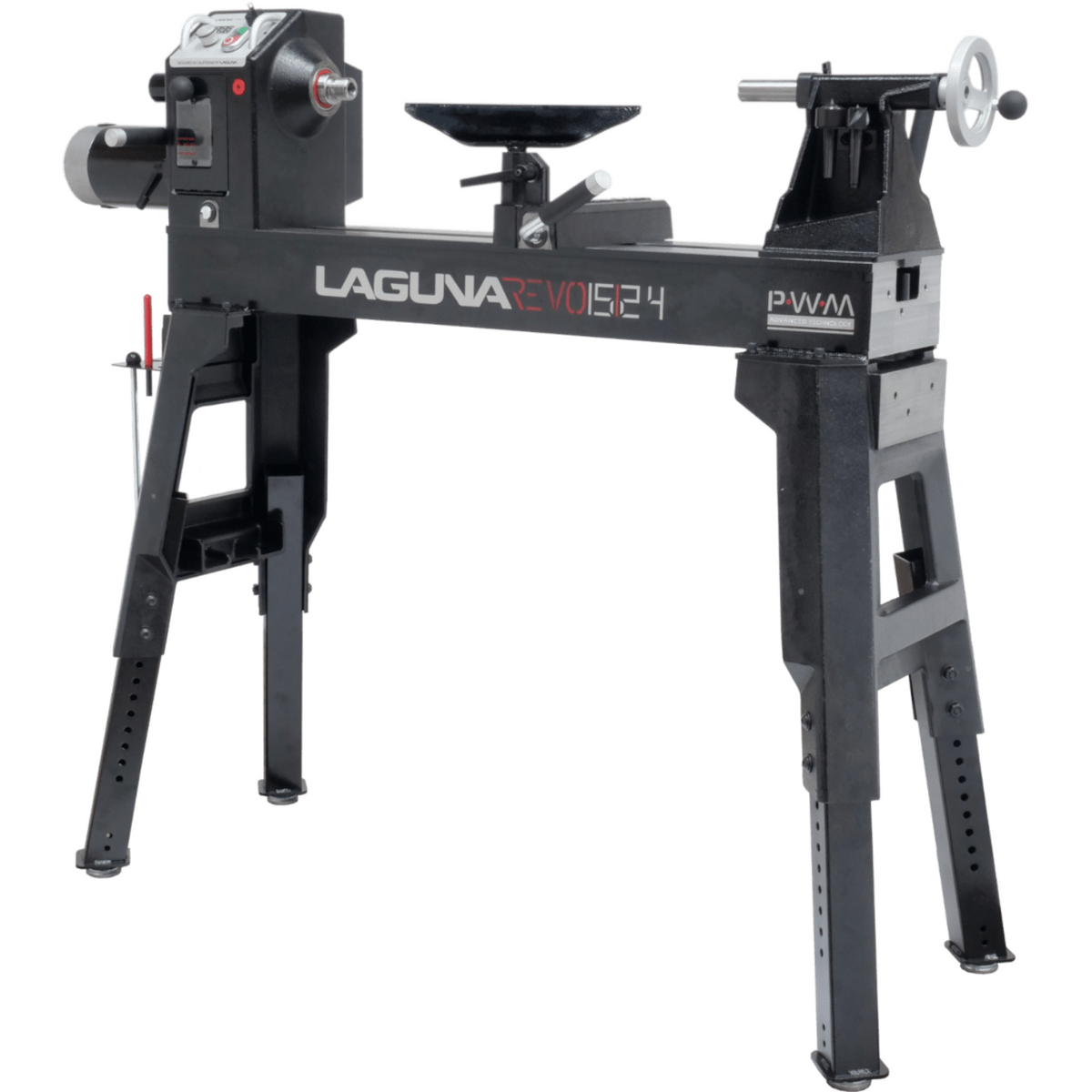

Laguna Tools Classic Lathe - Revo 15|24 - 415241
Laguna Tools Classic Lathe - Revo 15|24 - 415241
Laguna Tools Classic Lathe - Revo 15|24 - 415241
With the launch of the Revo 15|24 Laguna is filling the gap between the Revo 12|16 & the legendary Revo 18|36, providing space constrained users with more power and capacity.
Features
- World-class fit and finish Laguna is known for
- Sliding headstock for ergonomic outboard bowl turning
- Infinite electronic variable speed from 50 – 4200 RPM with a 3 step pulley
- Extraordinary torque even at low speeds, powered by Laguna Pulse Width Modulation
- Adjustable-height legs allow a more ergonomic working position tailored to individuals needs
- Steel bed provides strength, stability and a surface that the banjo will glide across smoothly
- A brand new feature is the patent-pending Precise Point that allows you to dial in the tailstock quill to meet with the headstock center
Specifications
- Electrical: 1.5HP, 110 Volt, 8 Amp, 60Hz.
- Motor: Permanent Magnet DC, 2150 RPM
- PWM: Pulse Width Module Speed Control
- Recommended Breaker: 15 Amp
- Spring Loaded Spindle Lock
- Swing Over Bed: 15-½″
- Swing Over Banjo: 11-3/32″
- Max. Outboard Swing with optional accessory: 25″
- Tool-Rest Post Size: 1″
- Tool-Rest Length: 12″
- Spindle Taper: MT#2
- RPM High: 650-4200
- RPM Mid: 325-2100
- RPM Low: 50-650
- Accepts Vacuum Chuck: No
- Tailstock Quill: 4-½″, Self-Ejecting
- Floor To Spindle Center Low: 36-13/32″
- Floor To Spindle Center High: 51-13/32″
- Floor To Bed Min.: 25-19/32″
- Floor To Bed Max.: 43-19/32″
- Front Bearing: TPI Taiwan 6206LLU
- Rear Bearing: TPI Taiwan 6205LLU
- Spindle Index #: 24 w/ Lock
- Distance Between Centers: 24″
- Headstock/Tailstock Through-Bore: ⅜″
- Headstock Travel: Full Length
- Tailstock Storage Of Centers
- Spindle Size: 1-¼″ x 8TPI RH
- Floor Space (W x D x H): 60″ x 22″ x 22″
- CSA C/US: 256540
- Box Dimensions (L x W x H): 52″ x 22″ x 22″
- Weight (Net/Ship): 288/302 lbs
Modification
Stand Shelf For REVO 15|24
Manuals
Video
What Our Experts Think
-
Precision & Power: The Laguna Tools Classic Lathe - Revo 15|24 - 415241 combines professional-grade power with smooth, quiet operation for precise woodturning.
-
Durable Build: Cast iron bed and headstock minimize vibration, ensuring stability and clean finishes on every project.
-
Variable Speed Control: Features electronic variable speed from 50–3,500 RPM, allowing flexibility for all turning applications.
-
User Comfort: Ergonomic design with adjustable height and easy-access controls makes long sessions comfortable and efficient.
-
Ideal for Serious Woodworkers: Perfect balance of size, power, and precision for turning bowls, spindles, and custom pieces.
Q&A
Q: What motor power does it have?
A: It’s equipped with a 1.5 HP, 110V DC motor delivering smooth variable speed performance.
Q: What is the swing capacity?
A: Offers a 15-inch swing over bed and 24-inch distance between centers.
Q: Does it have reverse function?
A: Yes, includes a forward/reverse switch for enhanced control during sanding and finishing.
Q: Is it easy to adjust speed?
A: Absolutely, it features a digital readout and dial control for precise RPM adjustment.
Maintenance Tips
-
Clean after each session: Wipe down the bed and remove dust or shavings from moving parts.
-
Lubricate components: Apply light oil to the tailstock and banjo slides to ensure smooth travel.
-
Inspect belt and pulleys: Check tension and replace worn belts as needed.
-
Keep motor vents clear: Ensure proper airflow to prevent overheating.
-
Protect from rust: Apply a thin coat of wax to the bed and tool rest for smooth tool movement.
