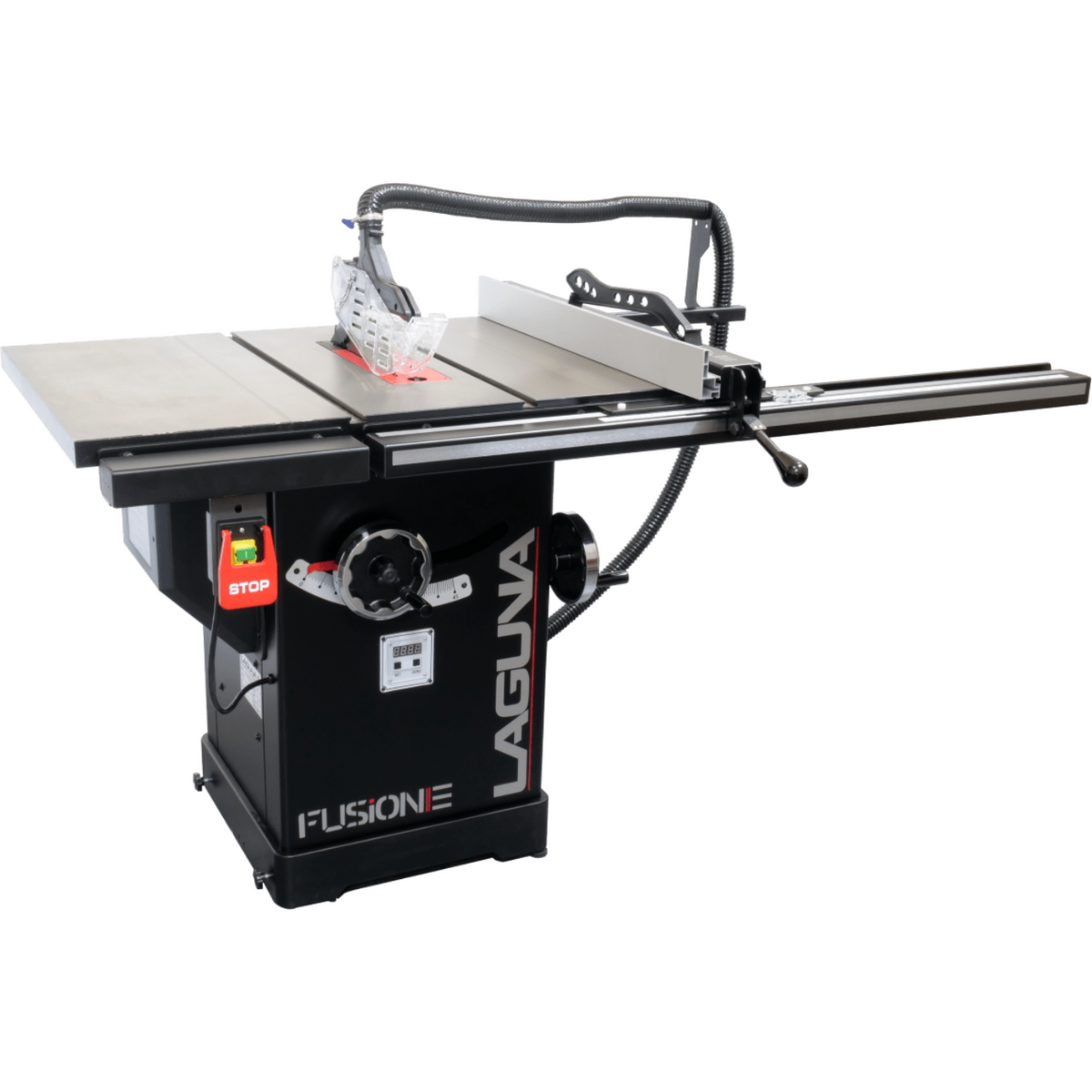

Laguna Tools Classic Machinery F1 Fusion Tablesaw - MTSF132110150-0130
Laguna Tools Classic Machinery F1 Fusion Tablesaw - MTSF132110150-0130
Laguna Tools Classic Machinery F1 Fusion Tablesaw - MTSF132110150-0130
The new Laguna Fusion Table Saws are unlike any saw on the market. Having the same quality demands earned through the original fusion table saw, the new fusion line will not only impress but exceed the expectations you have come to expect from Laguna. With a completely redesigned trunnion and arbor controls that focuses on buttery smooth controls and longevity of the saw, we are sure this is the saw that will give you the perfect rip cut for many many years.
Features
- 1.5HP TEFC Motor
- 110V, Single-Phase, 60Hz Power Requirement
- Fusion Dust Collection System
- Polished Cast Iron Table
- Included Tools & Integrated Tool Storage
- Included 10 x 60T Carbide-Tipped Blade
Features
30″ Rip Fence
Steel bodied and featuring a detachable integrated push stick for your convenience
Dust Collection
Dust collection through the saw guard provides a clean work area for precise cutting
On-Board Tool Storage
Have your rip fence and other Fusion accessories out of the way but easily accessible
Sealed Bottom
Improving overall dust collection greatly
Additional Details
F1 Features
- Fusion Hi-Lo Dust Collection
- Fusion Over-Under Trunnions
- Polished Cast Iron Table
- Reset Switch
- Quick-Release Blade Guard and Spreader
- Riving Knife Included
- Push Stick Included
- Miter Gauge Included
- Blade Changing Tool Included
- Integrated Tool Included
- Premium Handles
- Included 10 x 60T Carbide-Tipped Blade
- Premium Arbor and Motor Bearings
Specifications
- Dust Port Size: 4″
- Blade Guard Dust Port Size: 1-½″ in.
- Table Saw Type: Hybrid Cabinet
- Maximum Blade Diameter: 10″
- Arbor Size: ⅝″
- Arbor Speed: 4000 RPM
- Maximum Width Of Dado: ¾″
- Blade Tilt Direction: Left
- Max Blade Tilt: 45°
- Maximum Depth Of Cut At 90°: 3-⅛″
- Maximum Depth Of Cut At 45°: 2-⅛″
Max Rip Right Of Blade With Included Fence & Rails: 31″*
* The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.
Blade Table & Fence
Blade Information
- Included Blade Information: 10″ x 60T
- Riving Knife/Spreader Thickness: 3/32″
- Required Blade Body Thickness: > ⅛″
- Required Blade Kerf Thickness: < 5/64″
Table Information
- Floor To Table Height: 34-⅜″
- Table Size With Extension Wing Width: 44″
- Table Size With Extension Wings Depth: 27″
- Distance – Front Of Table To Center Of Blade: 13-7/16″
- Distance – Front Of Table To Blade At Maximum Cut: 8-⅝″
- Main Table Size Thickness: 1-½″
Fence Information
- Fence Type: Camlock T-Shape With Aluminum Face
- Fence Size Length: 33-7/16″
- Fence Size Width: 9-13/16″
- Fence Size Height: 2-7/16″
- Fence Rail Type: Aluminum Extrusion/Angle Steel
- Fence Rail Length: 59-⅜″
- Fence Rail Width: 2-15/16″
- Fence Rail Height: 1-15/16
Dimensions
Product Dimensions
- Weight (Net): 195 lbs
- Overall Width (Side-To-Side): 58″
- Overall Depth (Front-To-Back): 37-7/32″
- Overall Height: 20-½″
- Footprint Width: 20-½″
- Footprint Length: 20-21/32″
- Space Required For Full Range Of Movement Width (Side-To-Side): 58-13/16″
- Space Required For Full Range Of Movement Depth (Front-To-Back): 37-7/32
Construction Information
- Table: Precision-Ground Cast Iron
- Wings: Pre-Formed Steel
- Cabinet: Pre-Formed Steel
- Trunnions: Cast Alloy
- Body Assembly: Pre-Formed Steel
- Fence Assembly: Aluminum Extruded Body
- Rails: Steel
- Miter Gauge Construction: Aluminum Body With Steel Bar
- Guard: Steel And Clear Plastic
- Body/Cabinet Paint Type/Finish: Powder Coated
- Arbor Bearings: Sealed & Permanently Lubricated
Video
Manual
What Our Experts Think
-
Precision Built: The F1 Fusion Tablesaw delivers professional-grade accuracy with a cast-iron tabletop and precision-ground surface.
-
Powerful Performance: Equipped with a 1.5 HP motor, it handles hardwoods and sheet goods with smooth, consistent cutting power.
-
Smooth Operation: Features a fully enclosed cabinet and built-in dust port for cleaner, quieter operation.
-
Accurate Fence System: The industrial T-square fence locks firmly for repeatable precision cuts.
-
Compact yet Capable: Ideal for small workshops needing cabinet-saw quality in a space-saving design.
Q&A
Q: What size blade does the F1 Fusion Tablesaw use?
A: It uses a standard 10″ blade for a variety of cutting applications.
Q: What motor power does it have?
A: The saw features a 1.5 HP motor that provides reliable performance for demanding woodworking tasks.
Q: Does it include a dust collection system?
A: Yes, it has a built-in dust shroud and 4″ dust port for efficient debris control.
Q: What kind of fence system is included?
A: The saw comes with a precision T-square style fence for accurate and smooth adjustments.
Maintenance Tips
-
Keep the Table Clean: Regularly wipe the cast-iron surface and apply a thin coat of paste wax to prevent rust.
-
Inspect Blade Alignment: Check blade and fence alignment monthly for precise cuts.
-
Lubricate Moving Parts: Apply light oil to the trunnion and elevation mechanisms for smooth operation.
-
Check Belt Tension: Ensure the drive belt maintains proper tension for consistent blade speed.
-
Maintain Dust Collection: Clean out the cabinet and dust port frequently to prevent clogging and overheating.
