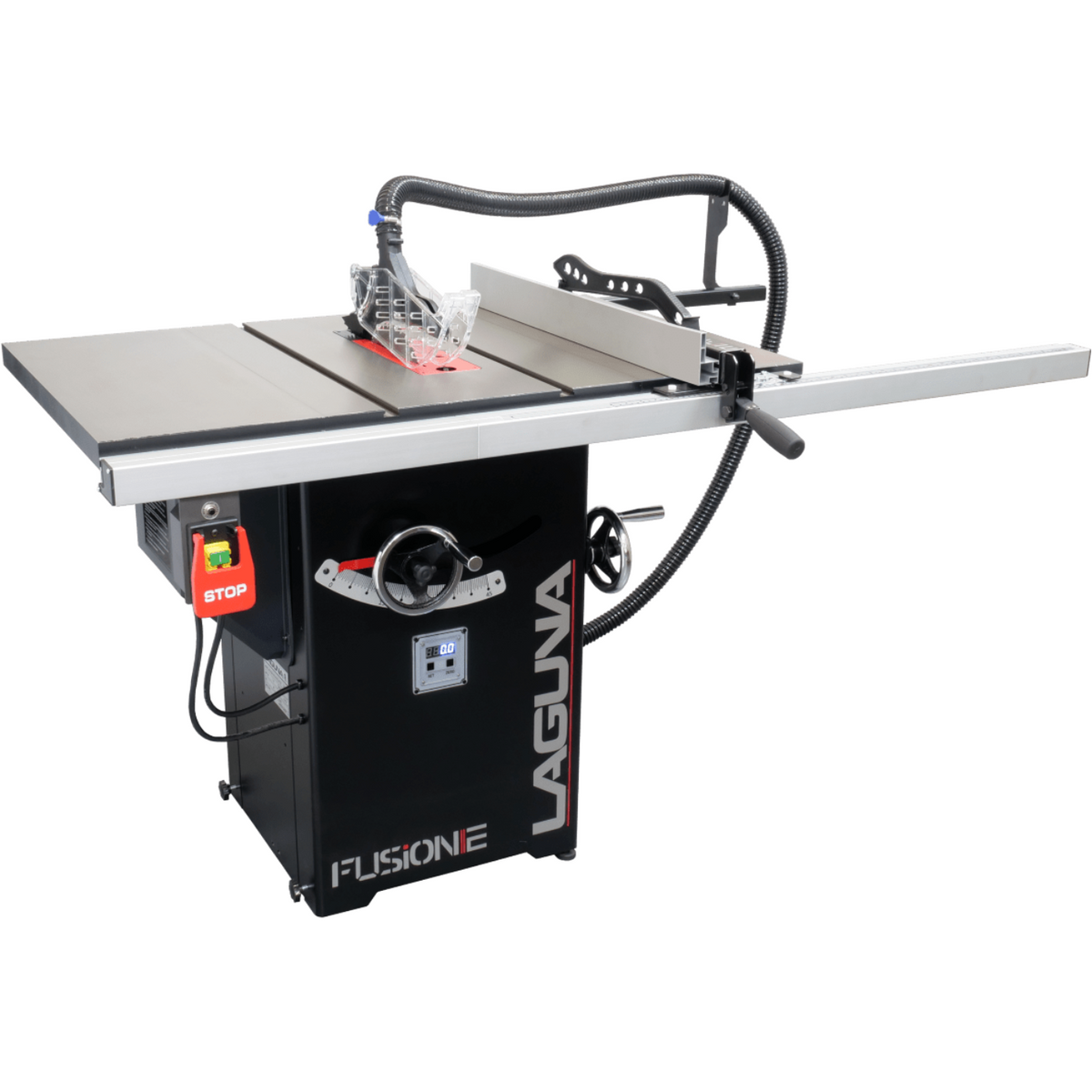

Laguna Tools Classic Machinery F2 Fusion Tablesaw - MTSF236110175-0130
Laguna Tools Classic Machinery F2 Fusion Tablesaw - MTSF236110175-0130
Laguna Tools Classic Machinery F2 Fusion Tablesaw - MTSF236110175-0130
The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.
All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws. The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position. Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 2 is the true successor to the original Fusion Table Saw. The task was simple: make a saw that was more refined, more precise, and cleaner.
Features
- 1.75HP TEFC Motor
- 110V, Single-Phase, 60Hz Power Requirement
- Fusion Dust Collection System
- Cabinet Mounted Design
- Included Tools & Integrated Tool Storage
- Included 10 x 60T Carbide-Tipped Blade
F2 Fusion Tablesaw
Digital Readout
Laguna has added DRO for the tilt on the Fusion F2 & F3 as standard equipment
European Hi/Low Fence
The Rip fence on Fusion F2 & F3 now features a Hi/Low window to work with the European style Hi/Low fence.
Optional 220V Upgrade
Contact Laguna Service For Details
On-Board Tool Storage
Have your rip fence and other Fusion accessories out of the way but easily accessible
Additional Details
F2 Features
- Full Cabinet Body
- Trunion Mounted To Body Not Table
- Cast Iron Table & Wings
- European Hi-Lo Fence
- Overhead Dust Collection
- Quick-Release Blade Guard & Splitter
- Riving Knife Included
- Fence Mounted Push Stick
- Miter Gauge Included
- Tool less Blade Lock
- Integrated Tool Storage
- Polished Handles
- 10″ x 60T Blade Included
- Premium Arbor & Motor Bearings
Specifications
- Dust Port Size: 4 in.
- Blade Guard Dust Port Size: 1-½″
- Table Saw Type: Cabinet
- Maximum Blade Diameter: 10″
- Arbor Size: ⅝″
- Arbor Speed: 4500 RPM
- Maximum Width Of Dado: ¾″
- Blade Tilt Direction: Left
- Max Blade Tilt: 45°
- Maximum Depth Of Cut At 90°: 3-⅛″
- Maximum Depth Of Cut At 45°: 2-⅛″
Max Rip Right Of Blade With Included Fence & Rails: 37″ *
* The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.
Blade Table & Fence
Blade Information
- Included Blade Information: 10″ x 60T
- Riving Knife/Spreader Thickness: 3/32″
- Required Blade Body Thickness: > ⅛″
- Required Blade Kerf Thickness: < 5/64″
Table Information
- Floor To Table Height: 35″
- Table Size With Extension Wing Width: 44″
- Table Size With Extension Wings Depth: 27″
- Distance – Front Of Table To Center Of Blade: 13-⅜″
- Distance – Front Of Table To Blade At Maximum Cut: 8-21/32″
- Main Table Size Thickness: 1-½″
Fence Information
- Fence Type: Camlock T-Shape With Aluminum European Hi-Lo Fence
- Fence Size Length: 33-7/16″
- Fence Size Width: 9-13/16″
- Fence Size Height: 3″
- Fence Rail Type: Aluminum Extrusion/Angle Steel
- Fence Rail Length: 66-9/16″
- Fence Rail Width: 3″
- Fence Rail Height: 2
Dimension
- Weight (Net): 276 lbs
- Overall Width (Side-To-Side): 66-13/16″
- Overall Depth (Front-To-Back): 39-⅜″
- Overall Height: 42-⅞″
- Footprint Width: 19-¼″
- Footprint Length: 42-½″
- Space Required For Full Range Of Movement Width (Side-To-Side): 66-13/16″
- Space Required For Full Range Of Movement Depth (Front-To-Back): 39-⅜″
- Shipping Weight: 435 lbs
- Shipping Dimensions (W x L x H): 30″ x 48″ x 43
Construction Information
- Table: Precision-Ground Cast Iron
- Wings: Precision Cast Iron
- Cabinet: Pre-Formed Steel
- Trunnions: Cast Alloy
- Body Assembly: Pre-Formed Steel
- Fence Assembly: Aluminum Extruded Body
- Rails: Steel
- Miter Gauge Construction: Aluminum Body With Steel Bar
- Guard: Steel And Clear Plastic
- Body/Cabinet Paint Type/Finish: Powder Coated
- Arbor Bearings: Sealed & Permanently Lubricated
Video
Manuals
What Our Experts Think
-
Precision & Power: The Laguna Tools Classic Machinery F2 Fusion Tablesaw - MTSF236110175-0130 combines accuracy and performance with its 1.75 HP, 110V motor, perfect for both professional and serious hobbyist woodworkers.
-
Smooth, Accurate Cuts: Features a precision-ground cast iron top and T-style rip fence for stability and repeatable accuracy.
-
Compact yet Strong: Its hybrid cabinet design offers the strength of a full cabinet saw in a smaller footprint.
-
Safety Focused: Comes equipped with a riving knife, blade guard, and quick-stop function for safer operation.
-
Dust-Free Performance: The built-in dust shroud and cabinet collection port ensure a clean workspace.
Q&A
Q: What motor power does it have?
A: The saw runs on a 1.75 HP, 110V TEFC motor for reliable cutting power.
Q: What is the rip capacity?
A: Offers up to 36” rip capacity, ideal for sheet goods and large projects.
Q: Is it suitable for fine woodworking?
A: Yes, its precision alignment system and flat cast iron table deliver cabinet-grade cuts.
Q: Does it have mobility options?
A: Yes, it includes built-in mobility wheels for easy shop movement.
Maintenance Tips
-
Clean the tabletop regularly: Wipe with a rust-preventive wax to maintain a smooth surface.
-
Check blade alignment: Keep the blade parallel to the miter slot for accurate cuts.
-
Inspect belts and pulleys: Ensure proper tension and replace if worn.
-
Lubricate trunnions and gears: Apply light oil for smooth height and tilt adjustments.
-
Maintain dust collection: Empty the dust port and clean filters for efficient performance.
