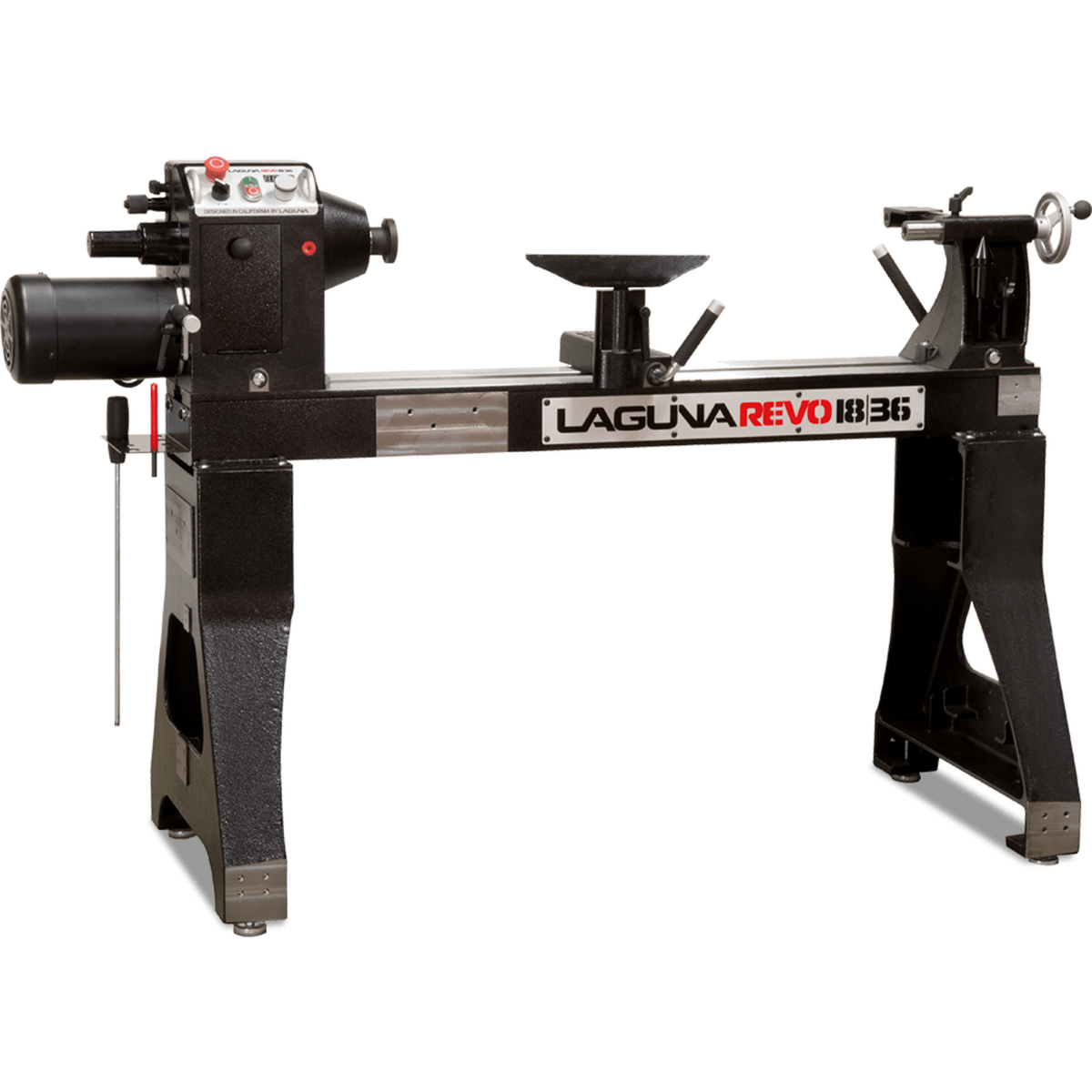

Laguna Tools Classic Machinery Revo 18|36 Lathe - MLAREVO 1836-110-150
Laguna Tools Classic Machinery Revo 18|36 Lathe - MLAREVO 1836-110-150
Laguna Tools Classic Machinery Revo 18|36 Lathe - MLAREVO 1836-110-150
The First feature that will catch your attention is undoubtedly the ergonomic angled control panel made from anodized aluminum. The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe.The bed is made from steel which allows the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well known longevity & strength.Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings you will get an incredible amount of torque. The DRO gives you an accurate RPM readout at all times any fine adjustments are made electronically. Changing from high to low settings is made easy by using the quick release handle.The headstock & tailstock lock handles are situated on the back to eliminate any interruptions to your work flow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.
Features
- Electrical: 1.5HP, 110 Volt, 60 hz
- Motor: Induction, 1725 RPM, TEFC
- VFD: Delta S1 Variable Frequency Drive
Specifications
- Phase: 1 Phase Input, 3 Phase Output
- Poly-Groove Drive Belt With EZ Access
- Recommended Breaker: 15 Amp
- Spring Loaded Spindle Lock
- Max Outboard Swing: 32″
- Swing Over Banjo: 13-½″
- Steel Bed: ASTM A36
- Toolrest Post Size: 1″
- Spindle Taper: MT#2
- Swing Over Bed: 18″
- RPM High: 135-3500
- RPM Low: 50-1300
- Tailstock Quill: 4-½″, Engraved, Self-Ejecting
- Floor To Spindle Center: 41-½″ with Pads
- Accepts Vacuum Chuck: Yes
- Front Bearing: TPI Taiwan 6207LLU
- Rear Bearing: TPI Taiwan 6205LLU
- Spindle Index #: 14/36/48 with Lock
- Distance Between Centers: 36″
- Headstock Through-Bore: ⅜″
- Headstock Travel: Full Length
- Tailstock Through-Bore: ⅜″
- Tailstock Storage Of Centers
- Spindle Size: 1-¼″ x 8 TPI RH
- Floor To Bed: 32-½″ with Pads
- Floor Space (W x L x H): 60″ x 26″ x 47″
- Shipping Weight: 570 lbs
- Shipping Dimensions (L x W x H): 61″ x 27″ x 28″
Modification
Shelf For REVO 18|36
Manuals
Video
What Our Experts Think
-
Professional Build: The Laguna Tools Classic Machinery Revo 18|36 Lathe - MLAREVO1836-110-150 combines strength and precision with its cast iron headstock and steel bed.
-
Smooth Performance: Powered by a 1.5 HP, 110V motor with a variable speed range for both delicate and large turning projects.
-
Excellent Capacity: Offers an 18" swing over bed and 36" between centers, perfect for bowls, spindles, and furniture parts.
-
User-Friendly Design: Digital RPM readout, ergonomic control panel, and quick-lock handles make operation easy and accurate.
-
Ideal for Woodturners: A great balance of professional power and compact size for serious hobbyists or small workshops.
Q&A
Q: What motor power does it use?
A: It runs on a 1.5 HP, 110V single-phase motor for smooth and quiet performance.
Q: What is the maximum swing and length capacity?
A: Offers 18" swing over bed and 36" between centers.
Q: What is the speed range?
A: Variable speeds from 50–1300 RPM (low) and 135–3500 RPM (high).
Q: What spindle thread and taper does it have?
A: Uses 1-1/4" x 8 TPI RH spindle with MT2 taper.
Maintenance Tips
-
Clean regularly: Remove chips and dust from bed and headstock areas after use.
-
Lubricate moving parts: Lightly oil the tailstock and locking handles for smooth operation.
-
Inspect belts: Keep drive belts tight and replace if worn or slipping.
-
Check alignment: Verify tailstock and headstock alignment for accurate turning.
-
Keep control panel clean: Ensure VFD vents stay clear for proper airflow and cooling.
