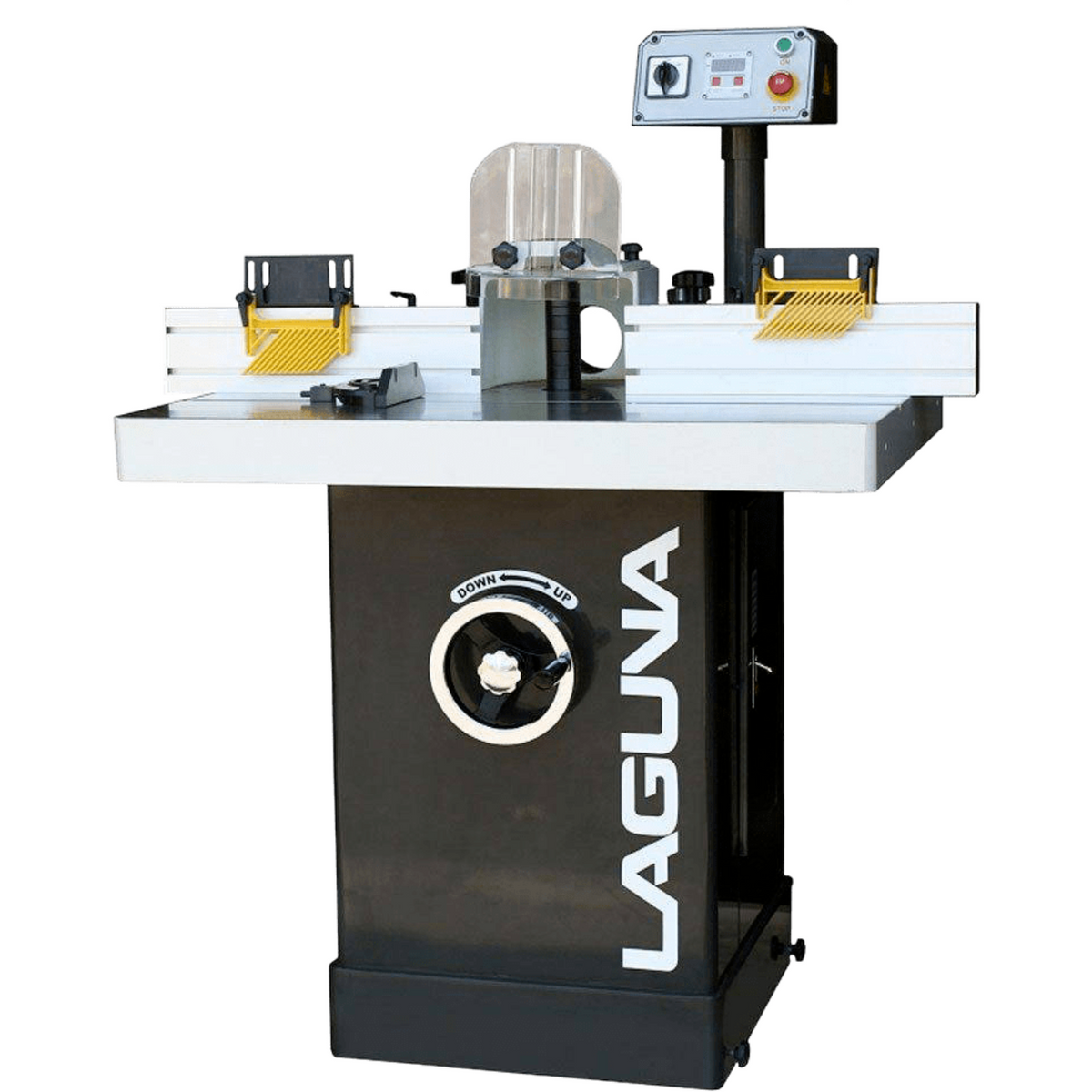

Laguna Tools Classic Shaper, Compact Pro - MSHAP5010-0130

$3,541.99 $5,499.00

Laguna Tools Classic Shaper, Compact Pro - MSHAP5010-0130

The Laguna Pro Shaper combines a precision shaper with features normally found only in much higher priced machines. The fit and finish on this machine is top notch and even includes a wheel kit built right into the base.The Laguna Pro Shaper is designed to give you years of trouble free performance without breaking the bank.

The table measures an impressive 31″ x 39″ and is predrilled to accept most power feeders. The fence has a precision micro-adjustment that is aligned by a solid steel bar. Each full revolution of the turn handle gives an exact 1/16″ adjustment to the fence. Inside you will find a heavy-duty motor available in either 5HP 220 volt 1 phase or 7.5 HP 220 volt 3 phase. Each offers 3 speeds with a unique quick change poly-groove belt system rather than the traditional V-belt. Digital readout is standard for the spindle height. The Pro Shaper is also equipped with a reversing switch and all controls are mounted with an easy access panel.

Features

Motor: 7.5HP 3 Phase 220V/5HP 1 Phase 220V
Table size: 39-5/16″ x 31-7/16″ x 3-1/2″
Spindle travel: 4″
Spindle Sizes: 3/4″ and 1-1/4″

Specifications

Capacity Under Nut: 6″(For 1-¼″) and 4″(For ¾″)
Router Collets: ¼″ and ½″
Spindle Speeds:5000, 7000, 10000 RPM
Table Opening Diameter: 7-5/16″
Digital Readout: Standard
Direction: Forward/Reversing Switch
Fence: Micro Adjustment
Weight (Net/Ship): 640/720 lbs
Shipping Dimensions (L x W X H): 43″ x 43″ x 60″

Manual

Pro Shaper Manual

Video

What Our Experts Think

Powerful & Precise: The Laguna Tools Classic Shaper, Compact Pro - MSHAP5010-0130 offers a strong 5 HP, 220V single-phase motor for consistent shaping performance.
Large Work Surface: A 39-5/16" x 31-7/16" cast iron table provides excellent stability and control for professional results.
Versatile Spindle Speeds: Operates at 5,000 / 7,000 / 10,000 RPM for various cutter sizes and materials.
Accurate Adjustments: Micro-adjust fence and digital readout ensure precise shaping every time.
Built for Pros: Durable build and easy belt changes make it ideal for cabinetmakers and woodworking shops.

Q&A

Q: What motor does it use?
A: It comes with a 5 HP, 220V single-phase motor for powerful shaping.
Q: What is the table size?
A: The table measures 39-5/16" x 31-7/16" x 3-1/2", giving you ample workspace.
Q: What spindle sizes are supported?
A: Accepts 3/4" and 1-1/4" spindles for tool flexibility.
Q: What are the spindle speeds?
A: Offers 5,000 / 7,000 / 10,000 RPM speeds to match different materials and cutters.

Maintenance Tips

Clean regularly: Wipe the table and spindle area after each use to prevent buildup.
Lubricate moving parts: Apply light oil to height screws and fence adjustments.
Check belts: Inspect and tension belts regularly for smooth speed changes.
Inspect spindle: Ensure the spindle runs true and stays debris-free.
Maintain dust collection: Keep the dust port clean for efficient operation.
