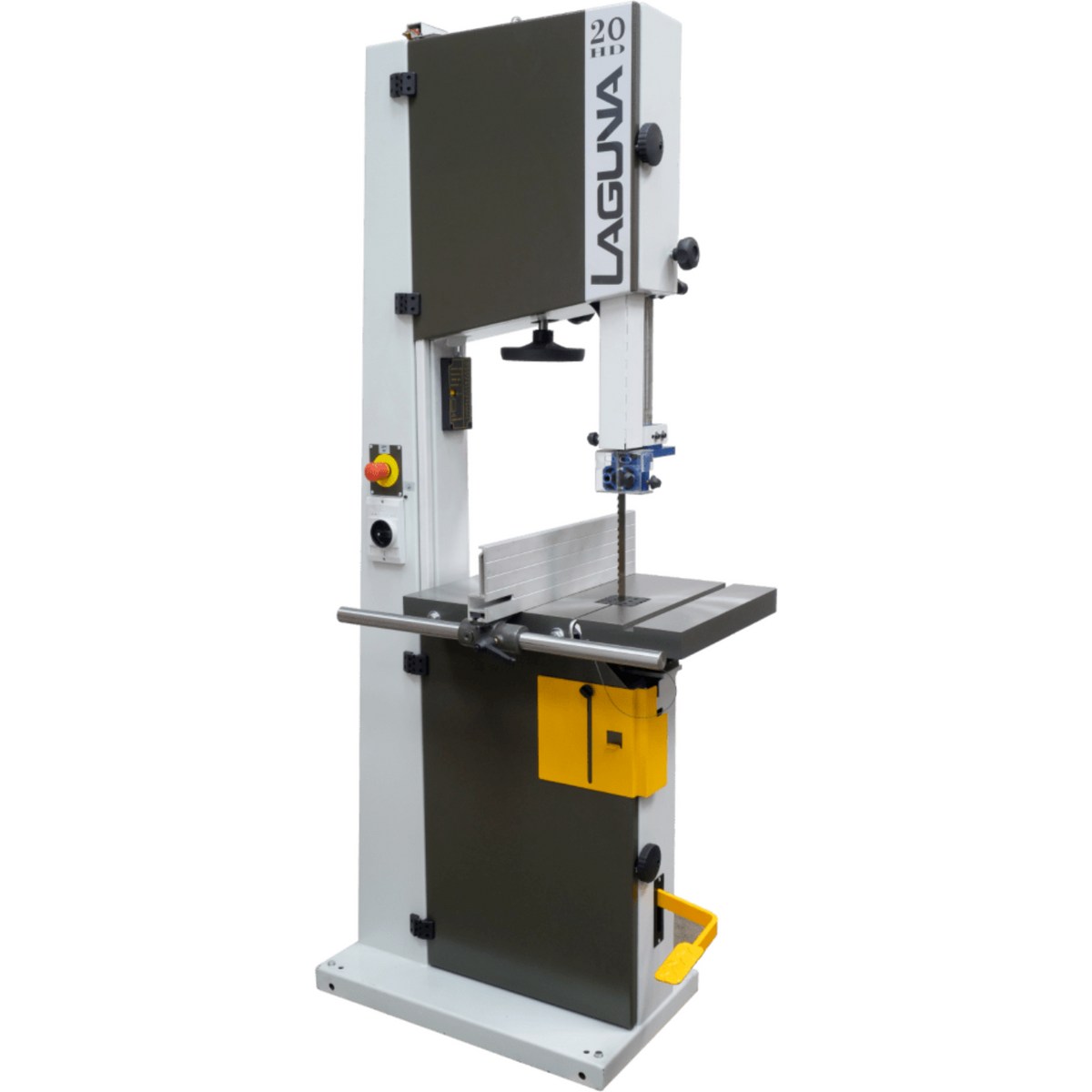

Laguna Tools Industrial Bandsaw LT20 - MBAND205200
Laguna Tools Industrial Bandsaw LT20 - MBAND205200
Laguna Tools Industrial Bandsaw LT20 - MBAND205200
The Laguna Tools LT 20 bandsaw fits great between our LT18 and LT24 models. The large table and 20″ resaw height open additional opportunities to show off your woodworking skills. This European saw features a 5 HP motor to provide plenty of power to tackle whatever job comes your way. The standard high/low resaw fence, geared trunnions, and EZ tension indicator make operation a breeze. Our award-winning Laguna Guide system features thumb screws for quick adjustment and precision control.
Features
- 20-3/8″ Resaw
- 220 Volt
- Min. Blade Width: 1/8″
- Max. Blade Width: 1-1/8″
- Throat: 19″
- Blade Length: 176″
Specifications
- Resaw Capacity: 20-3/8″
- Throat Capacity: 19″
- Blade Length: 176″
- Minimum Blade Width: *1/8″ (*with optional Cool Blocks) or 1/4″ standard
- Maximum Blade Width: 1-1/8″
- Blade Guides: Laguna Guides
- Upper Guide: Rack and Pinion
- Table Size: 19″ x 25″
- Table Height: 35″
- Fence: Hign/Low Aluminum Standard
- Overall Height: 86″
- Base Size: 15″ x 29″
- Dust Port: One 4″ Port
- Motor: 5 HP LEESON
- Volt: 220V. Can be ordered 1ph or 3ph
- Recommended Breaker: 30 Amp
- Weight (Net/Ship): 585 lbs / 660 lbs
- Shipping Dimensions (L x W x H): 36″ x 40″ x 95″
Video
Manual
What Our Experts Think
-
Industrial Power: The LT20 Bandsaw is built for continuous heavy-duty use with a powerful 5 HP motor and precision-balanced cast-iron wheels for smooth, consistent cuts.
-
Massive Cutting Capacity: Offers up to 20″ resaw height and a large table surface, ideal for thick hardwoods and large panels.
-
Precision Engineering: Micro-adjustable fence, rack-and-pinion table tilt, and ceramic blade guides ensure unmatched accuracy.
-
Built for Stability: The solid steel frame minimizes vibration, providing excellent blade tracking and longevity.
-
Professional Choice: Designed for high-volume shops needing industrial reliability with exceptional finish quality.
Q&A
Q: What is the cutting capacity of the LT20?
A: It offers a 20″ resaw height with a throat capacity of around 20″.
Q: What motor does it use?
A: Equipped with a 5 HP, 220 V single-phase or three-phase motor depending on configuration.
Q: What type of guides are used?
A: Uses Laguna’s ceramic guide system for reduced friction and improved blade life.
Q: Is it suitable for resawing hardwoods?
A: Yes, its high torque and stability make it ideal for wide hardwood boards and veneers.
Maintenance Tips
-
Clean After Each Use: Remove sawdust buildup on the table, wheels, and guides to maintain performance.
-
Inspect Blade Tension: Check and adjust blade tension before every session for accurate cuts.
-
Lubricate Bearings: Apply light oil periodically to wheel and tension bearings for smooth operation.
-
Align Guides & Fence: Verify alignment after blade changes to prevent drift.
-
Check Drive Belt & Tracking: Ensure proper belt tension and blade tracking for consistent, vibration-free cutting.
