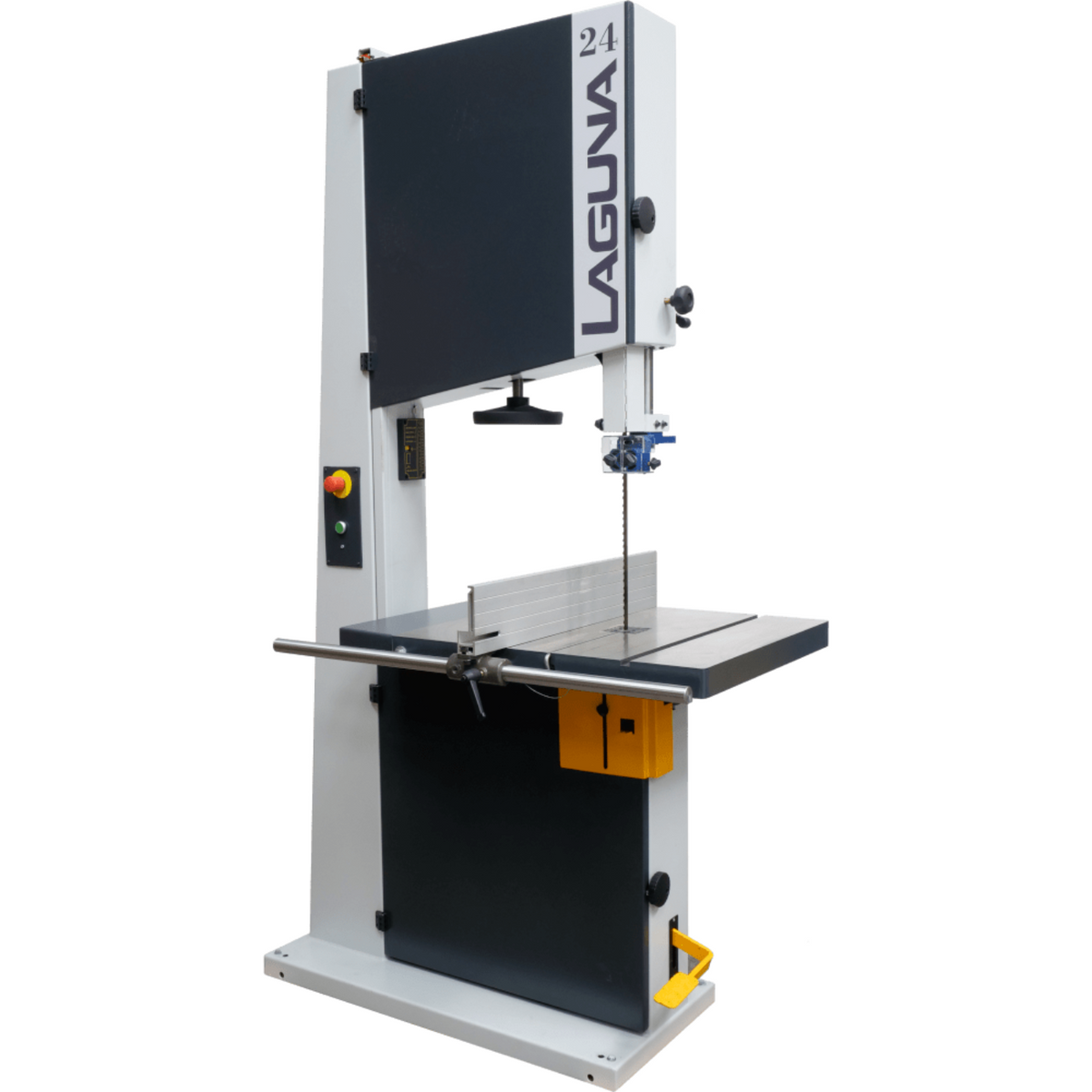

Laguna Tools Industrial Bandsaw LT24x17 - MBAND245200
Laguna Tools Industrial Bandsaw LT24x17 - MBAND245200
Laguna Tools Industrial Bandsaw LT24x17 - MBAND245200
If you are working on jobs that require a large table and extra throat capacity, then this is the machine for you. Boasting a 17-5/8″ resaw capacity that is driven by an American made 5 HP, single phase motor and all the trappings known in the Laguna Tools line of bandsaws. The LT24x17 HD Bandsaw features that include geared trunions, EZ Tension indicator, foot brake, high/low fence system and our award-winning Laguna Guide System with Space Age technology. Expect our renowned Laguna quality and built Laguna Tough with all the innovations!
Features
- 5 HP 1 Phase Standard
- Optional: 5HP 3 Phase or 7.5 HP 3 Phase Available at Additional Cost
- 220 Volt
- 30-40 Amp Recommended Breaker
- Min-Max blade width: 1/8″ – 1-1/4″
- Resaw Capacity: 17-5/8″
Specifications
- Resaw Capacity: 17-⅝″
- Throat Capacity: 23-¼″
- Blade Length: 183″
- Minimum Blade Width: *⅛″ (*with optional Cool Blocks) or ¼″ standard
- Maximum Blade Width: 1-½″
- Blade Guides: Laguna Guides
- Upper Guide: Rack and Pinion
- Table Size: 24″ x 34-½″
- Table Height: 35″
- Fence: Hign/Low Aluminum Standard
- Overall Height: 96″
- Base Size: 15″ x 41-⅜″
- Dust Port: One 4″ Port
- Motor: 5 HP Standard or 7.5 HP Triple Phase (Additional Cost)
- Volt: 220V. Can be ordered 1ph or 3ph
- Recommended Breaker: 30/40 Amp
- Weight (Net/Ship): 725 lbs / 825 lbs
- Shipping Dimensions (L x W x H): 36″ x 40″ x 96″
Video
Manual
What Our Experts Think
-
High-Capacity Performance: Designed for industrial shops, offering a 17-⅝″ resaw height for handling large hardwood slabs and thick stock.
-
Powerful Motor Options: Available with a 5 HP single-phase or 7.5 HP three-phase motor for maximum cutting torque and reliability.
-
Exceptional Stability: Heavy cast-iron frame and balanced 24″ wheels minimize vibration for clean, precise cuts.
-
Generous Table Size: Large 24″ × 34-½″ work table supports big panels and furniture components.
-
Professional Control: Features rack-and-pinion height adjustment, blade tension indicator, and foot brake for safety and precision.
Q&A
Q: What is the maximum resaw height?
A: Approximately 17-⅝″, suitable for thick slabs and veneers.
Q: What blade sizes does it support?
A: Accepts blades from 1/8″ up to 1-½″ wide for various cutting applications.
Q: What power options are available?
A: Comes in 5 HP single-phase or 7.5 HP three-phase configurations.
Q: What are the table dimensions?
A: The worktable measures roughly 24″ × 34-½″ for stable material handling.
Q: Is it suitable for production work?
A: Yes, built for continuous industrial use with excellent power and precision balance.
Maintenance Tips
-
Clean After Each Use: Remove sawdust from wheels, guides, and table to maintain smooth operation.
-
Check Blade Tracking & Tension: Use the tension indicator to ensure proper alignment before each job.
-
Lubricate Adjustments: Lightly oil rack-and-pinion and guide mechanisms monthly.
-
Inspect Tires & Guides: Replace or clean if buildup affects tracking accuracy.
-
Maintain Dust System & Brakes: Keep the dust port clear and ensure the foot brake functions properly for safety.
