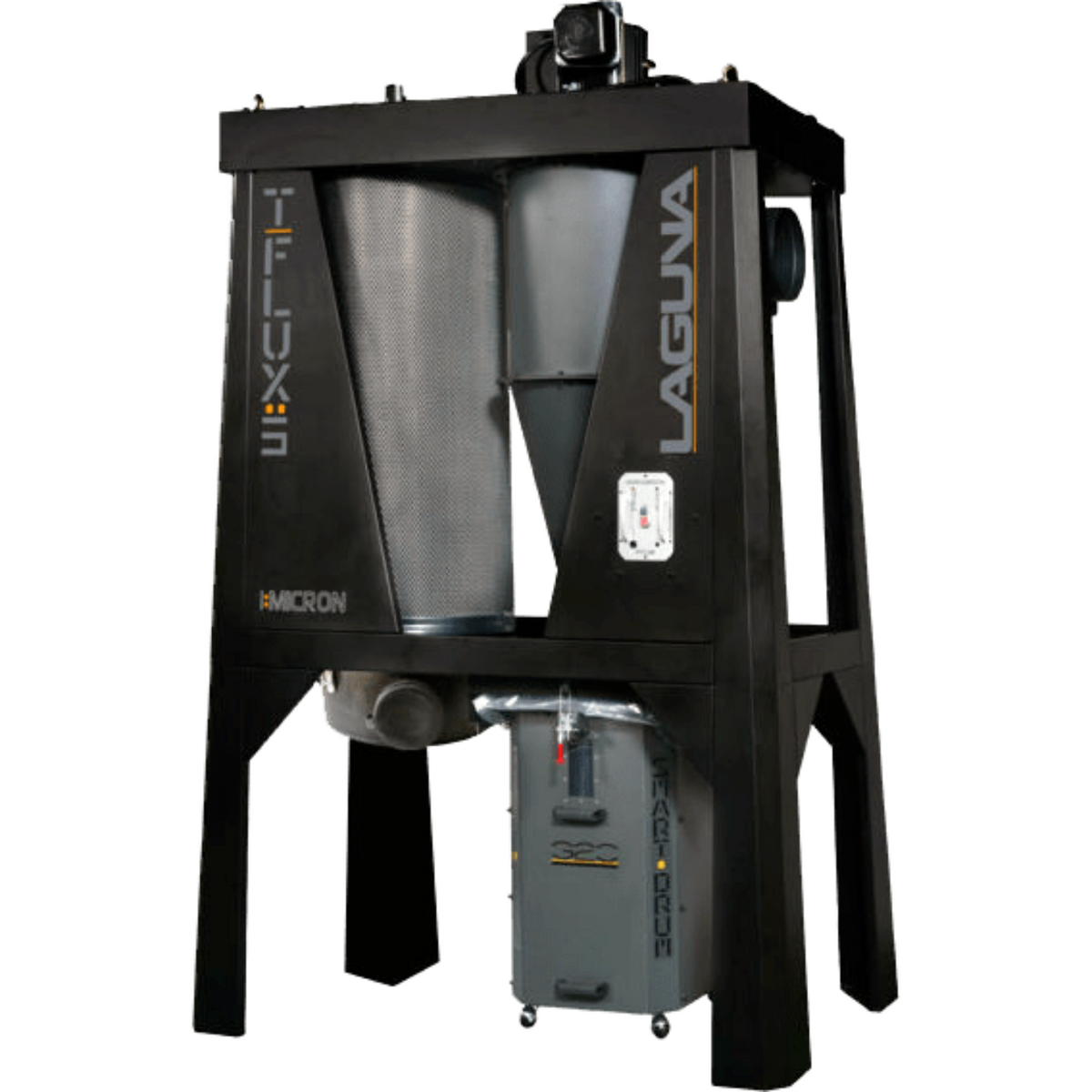

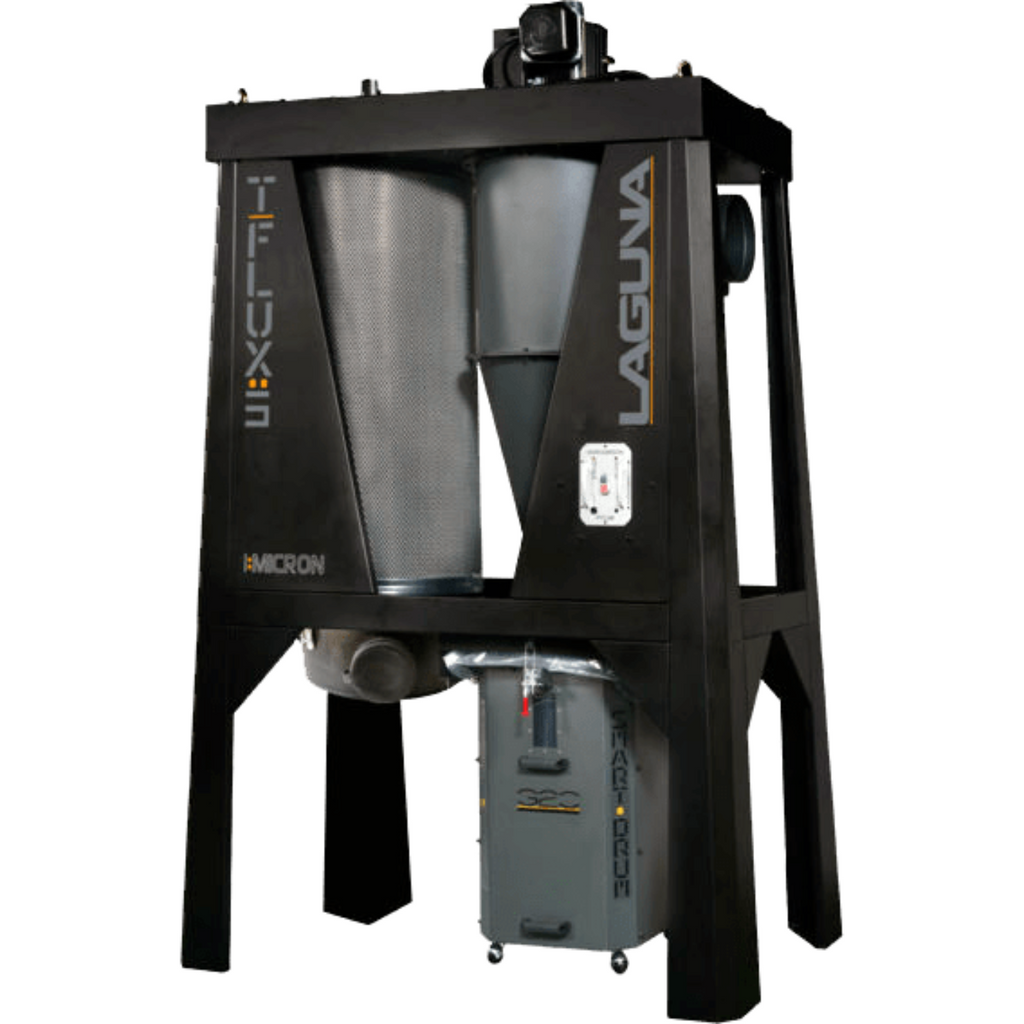

Laguna Tools Industrial Dust Collector T|Flux: 5 Cyclone - MDCTF52201
Laguna Tools Industrial Dust Collector T|Flux: 5 Cyclone - MDCTF52201
Laguna Tools Industrial Dust Collector T|Flux: 5 Cyclone - MDCTF52201
The T|Flux series from Laguna starts to get serious. The Titan cyclones are geared towards clients who desire a single central unit for the entire shop. The T|Flux cyclones are equipped with a 10″ port that splits into 3 x 4″, allowing you to run a large diameter pipe system throughout your shop with drops to the individual stations.
All models are outfitted with smart drums which alert the user when the drums reach capacity. Automatic canister cleaning is controlled by a timer that turns on every work hour & runs 10 seconds clockwise & counter clockwise. The 1 micron canister has a huge surface area and filtrates 99.97% of particles ranging from 0.2 to 2 microns. Smart Drums comes standard with high quality casters and feature our unique quick disconnect design.
Features
- Motor HP: 5 HP
- 220V, 22.4 Amps, 1 Phase
- 40 AMP Recommended Breaker
- 60 Hertz
- 3450 RPM
- Switch Type: Sunken Radio Frequency Remote switch with LED full drum & LED Filter dirt detection
- Hand Held Remote Control: High Frequency
Specifications
- Shop Setting CFM*: 2450
- Inlet CFM: 4295
- Max Static Pressure (Inches of Water): 12.1″
- Impeller/Fan Size: 16″
- Impeller Material: Steel
- Impeller Type: Radial Fin
- Balanced To: ISO 1940
- Inlet Diameter: 10″
- Drum Capacity: 54 Gal
- Octagon Drum: Low Pressure Suction
- Drum Collection Bag (Dia. x L): Plastic Bag (740 x 1300mmL)
- Canister Filter Type: Black 1 Micron
- Filtration Efficiency: 1.2-2 Micron @ 99.97%
- MERV Rating: 12
- Canister Diameter: 600mm (23.62″)
- Canister Length: 1200mm (47.24″)
- Filter Surface Area: 15m²/162ft²
- Canister Cleaning: Auto Clean (Gear Motor)/ Cleans every hour 10 sec clockwise, 10 sec counter-clockwise
- Canister Filter Lower Dust Collection: Plastic Bag (610 x 600mmL)
- Wheels: None
- US/CSA Approved: Yes
- Decibel Reading: 76dB(A)(@9.8ft)
- Machine Weight: 325 kgs/717 lbs
- Shipping Weight: 430 kgs / 948 lbs
- Shipping Dimensions (L x W x H): 75″ x 39″ x 80″
- Assembled Dimensions (L x W x H): 73″ x 39″ x 111″ (1845 x 989 x 2810mm)
Performance
Dimensions
Manual
What Our Experts Think
-
Powerful Dust Extraction: The T|Flux: 5 Cyclone delivers exceptional suction performance with a 5 HP motor, ideal for large shops and industrial operations.
-
Efficient Cyclone Separation: Its twin-stage design separates fine and heavy dust, ensuring cleaner air and reduced filter maintenance.
-
Massive Airflow Capacity: With over 2,000 CFM, it easily handles multiple machines simultaneously for continuous productivity.
-
Premium Filtration System: Equipped with a HEPA canister filter capturing 99.97% of particles down to 0.2 microns.
-
Convenient Waste Management: Features an automatic barrel lift system and large collection drum for quick, mess-free disposal.
Q&A
Q: What motor size does the T|Flux: 5 Cyclone use?
A: It’s powered by a robust 5 HP motor engineered for industrial-grade dust extraction.
Q: What is the airflow capacity?
A: The system delivers over 2,000 CFM, making it suitable for multiple simultaneous dust sources.
Q: Does it include a HEPA filter?
A: Yes, the HEPA canister captures fine dust particles for a cleaner, safer workspace.
Q: How is the waste collected?
A: Dust and chips are separated into a large steel drum with an easy-lift barrel system for fast disposal.
Maintenance Tips
-
Empty Drum Regularly: Prevent overfilling to maintain consistent suction and airflow.
-
Clean Filters Frequently: Use compressed air or gentle brushing to extend filter life.
-
Inspect Hoses & Connections: Check for leaks or blockages weekly to ensure peak efficiency.
-
Lubricate Lift Mechanism: Apply light oil to the barrel lift components for smooth operation.
-
Monitor Motor & Impeller: Keep the motor housing clean and check impeller balance periodically.
