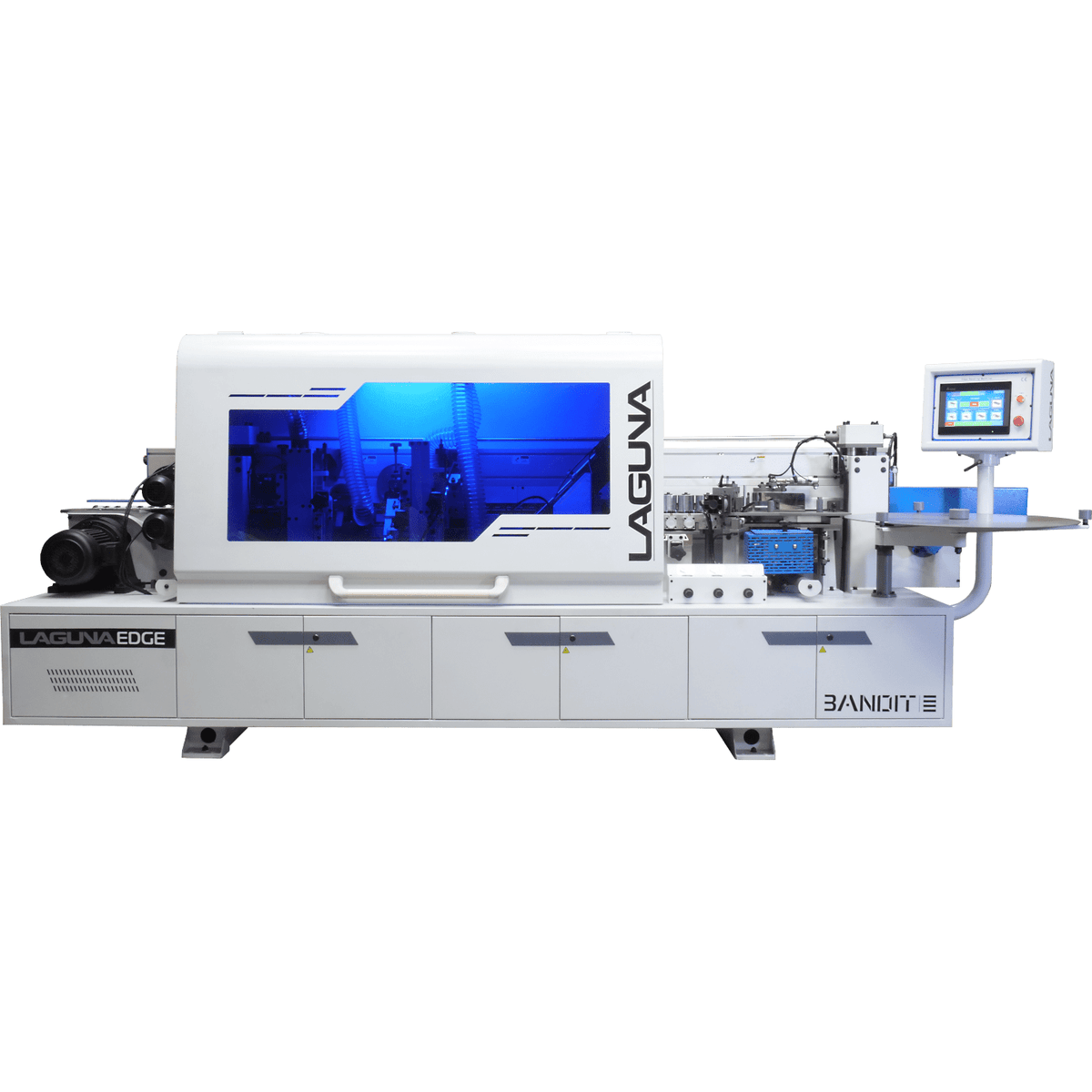

Laguna Tools Industrial Edgebander - Bandit 4 - MEB-4/3- NEW
Laguna Tools Industrial Edgebander - Bandit 4 - MEB-4/3- NEW
Laguna Tools Industrial Edgebander - Bandit 4 - MEB-4/3- NEW
The Bandit 4 is perfect for small shops that are doing thin edgebanding from 0.4-3mm product. This machine features top/bottom and front/rear edge scraping and buffing. The Bandit 4 also has a swiveling control cabinet that enables you to control the machine during both job setup and while edgebanding material.
Features
- Dual Motor End Trim
- Top & Bottom Trim
- Buffing & Scraping
- Quick Melt Glue System
- 3mm Capacity
Specifications
- Model: MEB42203
- Feed Speed: 15-23m/min(49-76ft/min)
- Edge Thickness: 0.4-3mm (1/64″ – 1/8″)
- Panel Thickness: 10-60mm
- Panel Length: >150mm
- Working Pressure: 0.6mpa
- Power Requirements: 220V-3PH-60HZ
- Total Power: 9kW (12HP)
- Panel Width: >40mm
- Dust Port Outer Diameter: 98mm (3.85″) x 3
- CFM Requirement: 1000 CFM
- Minimum Panel Size (L x W): 300mm x 40mm (11-13/16″ x 1-9/16″) /
- 150mm x 150mm (5-29/32″ x 5-29/32″)
Dimensions
Video
What Our Experts Think
-
High-Production Efficiency: The Bandit 4 Edgebander delivers fast, consistent edge finishing—ideal for cabinet, furniture, and millwork shops.
-
Powerful Industrial Build: Heavy-duty steel frame and precision feed system ensure long-term durability and vibration-free performance.
-
Professional Edge Quality: Equipped with end trim, top/bottom trim, buffing, and scraping stations for a seamless factory-grade finish.
-
User-Friendly Control: Digital temperature and feed speed adjustments allow precise setup for various edge materials.
-
Reliable Performance: Designed for continuous operation, producing consistent, high-quality edges on PVC, ABS, and wood veneer.
Q&A
Q: What materials can the Bandit 4 handle?
A: It applies PVC, ABS, melamine, wood veneer, and similar edge materials.
Q: Does it include trimming and buffing stations?
A: Yes, it features end trim, top/bottom trim, scraping, and buffing units for a complete finish.
Q: What type of glue system does it use?
A: Uses a heated glue pot system with precise temperature control for optimal adhesion.
Q: Is feed speed adjustable?
A: Yes, the variable feed speed allows fine-tuning for different edge types and materials.
Maintenance Tips
-
Clean Glue Pot Regularly: Remove old glue buildup and clean with approved solvent after each use.
-
Lubricate Moving Parts: Apply light oil to feed rollers, trim heads, and chain system weekly.
-
Inspect Blades and Cutters: Keep trimming knives and buffing wheels sharp and clean for smooth results.
-
Check Temperature Controls: Ensure sensors and thermostats maintain consistent heat levels.
-
Maintain Dust and Chip Extraction: Clean filters and hoses frequently to prevent clogging and overheating.
