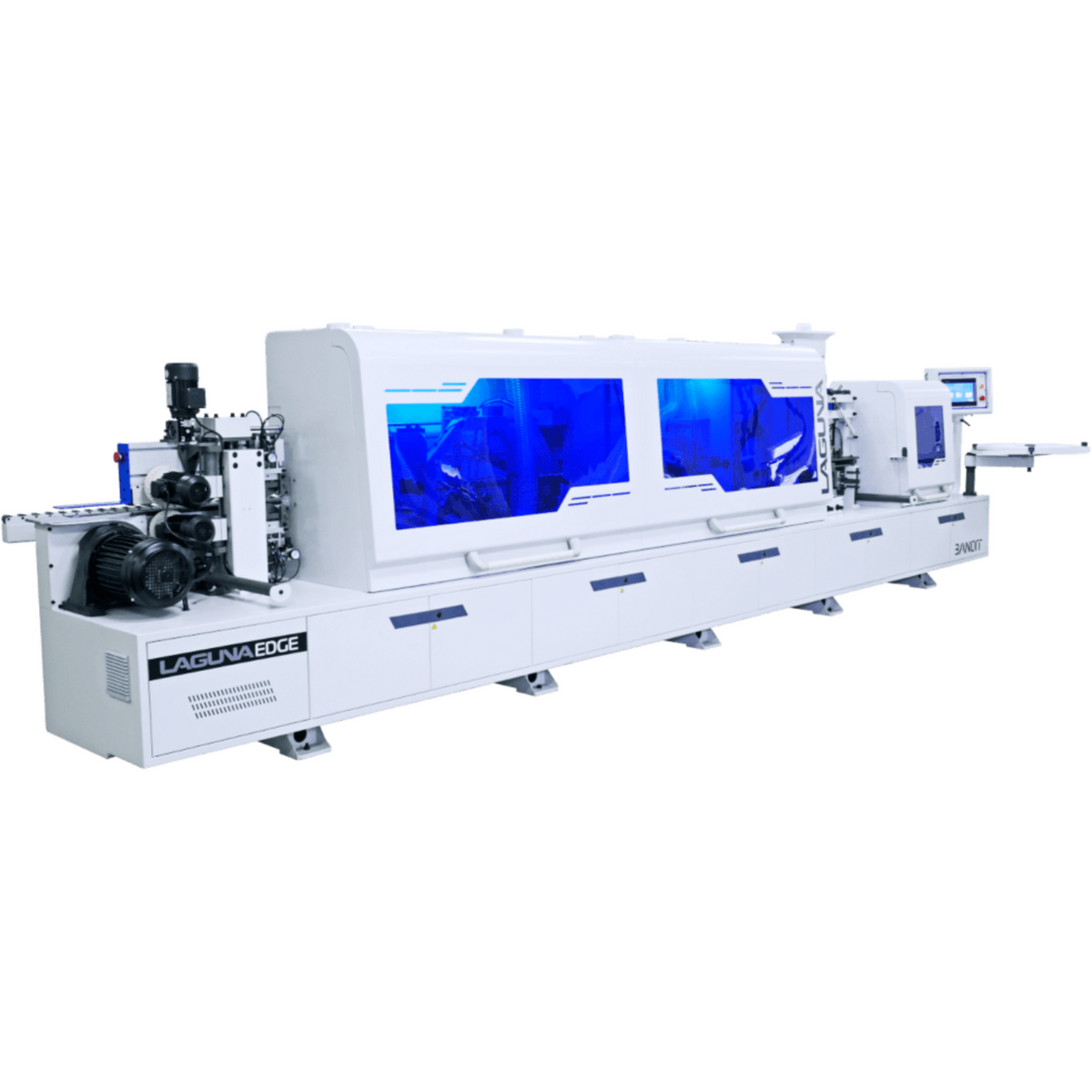

Laguna Tools Industrial Edgebander Bandit 5 - MEB-5/3 NEW
Laguna Tools Industrial Edgebander Bandit 5 - MEB-5/3 NEW
Laguna Tools Industrial Edgebander Bandit 5 - MEB-5/3 NEW
The Bandit 5 is the flagship model of our Edgebander line. With the addition of Pre Milling and Corner Rounding, this machine has all the features you’ve come to expect from a Laguna Edgebander. The Bandit 5 can apply a perfect edge finish for you every time.
Features
- Pre-Mill
- Corner Rounding
- Dual Motor End Time
- Top & Bottom Trim
- Buffing & Scraping
Specifications
- Model: MED52203
- Feed Speed: 15-23m/min(49-76ft/min)
- Edge Thickness: 0.4-3mm (1/64″ – 1/8″)
- Panel Thickness: 10-60mm
- Panel Length: >150mm
- Working Pressure: 0.6mpa
- Power Requirements: 220V-3PH-60HZ
- Total Power: 16.45kW (22HP)
- Panel Width: >60mm
- Dust Port Outer Diameter: 98mm (3.85″) x 5
- CFM Requirement: 2000 CFM
- Minimum Panel Size (L x W): 300mm x 60mm (11-13/16″ x 2-3/8″) /
- 150mm x 150mm (5-29/32″ x 5-29/32″)
Dimensions
Video
What Our Experts Think
-
Top-Tier Performance: Built for industrial-level production with precision pre-milling, edge application, trimming, and corner rounding.
-
High-Speed Operation: Feed rate between 15–23 m/min for fast, efficient workflow in busy shops.
-
Versatile Edgebanding: Handles edge tape thicknesses from 0.4 mm to 3 mm for PVC, wood, and laminate materials.
-
Heavy-Duty Build: Powered by a 22 HP system for durability and consistent performance in continuous operation.
-
Professional Finish: Ensures clean, seamless edges ideal for cabinetry, furniture, and commercial millwork.
Q&A
Q: What edge tape thickness does it support?
A: It works with edge tape from 0.4 mm to 3 mm.
Q: What is the panel thickness range?
A: It accommodates panels from 10 mm to 60 mm thick.
Q: How fast is the feed rate?
A: Adjustable between 15 m/min and 23 m/min for optimized productivity.
Q: What power does it require?
A: Operates on 220 V, three-phase power for industrial use.
Q: Does it include corner rounding?
A: Yes, the Bandit 5 includes a fully integrated corner rounding station.
Maintenance Tips
-
Clean After Every Shift: Remove glue, dust, and chips from the glue pot and trimming units.
-
Check Pre-Milling Alignment: Keep cutter heads aligned for precise panel preparation.
-
Lubricate Regularly: Oil moving parts and feed rollers to prevent wear.
-
Inspect Trimming Blades: Keep all knives and buffing wheels sharp for a polished finish.
-
Maintain Air and Dust Systems: Ensure steady air pressure and clean dust ports for smooth performance.
