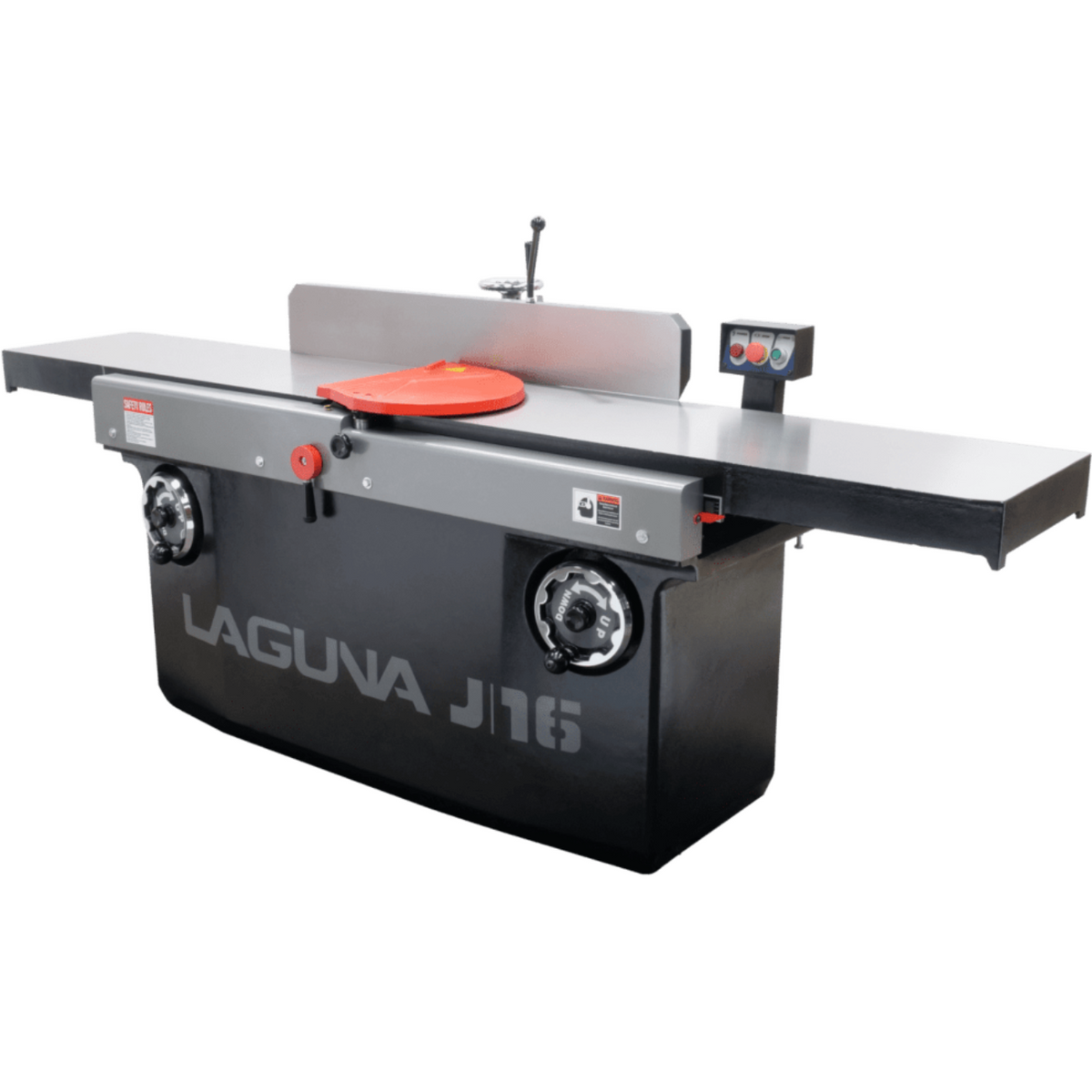

Laguna Tools Industrial Jointer, 16" J|16 - MJO6405-5HP-1PH-0800 16" J

Laguna Tools Industrial Jointer, 16" J|16 - MJO6405-5HP-1PH-0800 16" Jointer HD 1PH

$7,276.49 $11,298.00

Laguna Tools Industrial Jointer, 16" J|16 - MJO6405-5HP-1PH-0800 16" Jointer HD 1PH

The J|16 Jointer is the true heavyweight of jointers. Our 16? version features a total length of over 8 feet. The heavy cast-iron tables are supported by parallelogram adjusters and controlled through precision hand-wheel adjusters. The Laguna ShearTec cutterhead is equipped with German carbide insert knives for maximum durability and quick replacement. The fence is a heavy casting supported by a large diameter shaft with rack and pinion movement for smooth, repeatable accuracy. The overhead control panel allows for quick, easy operation. The swing-away guard is easily adjustable and removable for knife replacements.

Features

98″ Table Length
16″ Jointer Width
31-1/2″ Table Height

Specifications

Parallelogram Adjustments

Jointer Fence Tilt: 90-45 Degrees
Motor: 5HP, 220V, 1 Phase/5HP,220V, 3 Phase
Cutterhead Speed: 5000 RPM
Cutterhead Diameter: 110mm
Cutterhead: Laguna ShearTec I
Cast Iron Body
Over Head Controls
Rack & Pinion Fence
Weight: 1685 lbs

Manual

J12 – J16 Manual

Video

What Our Experts Think

Robust industrial design: 16″ width and over 8 ft long cast-iron tables provide serious capacity and rigidity for heavy shop use.
Precision cutterhead: Features a ShearTec cutterhead with carbide insert knives, enabling cleaner cuts and longer tool life.
Smooth fence & adjustment system: Heavy-duty rack & pinion fence with parallelogram table adjustment offers accurate and repeatable setup.
High-performance motor: 5 HP single-phase drive gives strong cutting capability while remaining accessible for most shop power.
Professional workflow ready: Large tables, overhead control panel and sound build quality mean this machine is designed for steady production.

Q&A

Q: What width of material can it handle?
A: Up to 16″ width capacity, designed for wide stock and large panels.
Q: How long are the tables?
A: Approximately 98″ long cast-iron tables support extended workpieces.
Q: What motor and phase does this model use?
A: 5 HP single-phase configuration (with options for other configurations).
Q: What cutterhead speed and diameter?
A: Cutterhead runs at ~5000 RPM, with roughly 110 mm (≈4.33″) diameter insert type.
Q: What tilt or fence adjustment does it provide?
A: Fence tilts from 90° to 45°, enabling angled work and flexible jointing setups.

Maintenance Tips

Clean tables & cutterhead area regularly: Wipe off dust, chips and resin after each use to maintain smooth feed and flat surfaces.
Check insert knives: Inspect carbide bits for wear or chipping and rotate or replace before finish quality suffers.
Lubricate adjustment mechanisms: Apply light oil or grease to parallelogram screws, hand-wheels, and fence shaft for smooth motion.
Verify table alignment & fence accuracy: Periodically check that in-feed and out-feed tables are flush and that the fence is square for consistent jointing.
Maintain dust extraction & guards: Ensure the dust port remains clear and safety guards are functioning—good extraction reduces wear and improves shop air quality.
