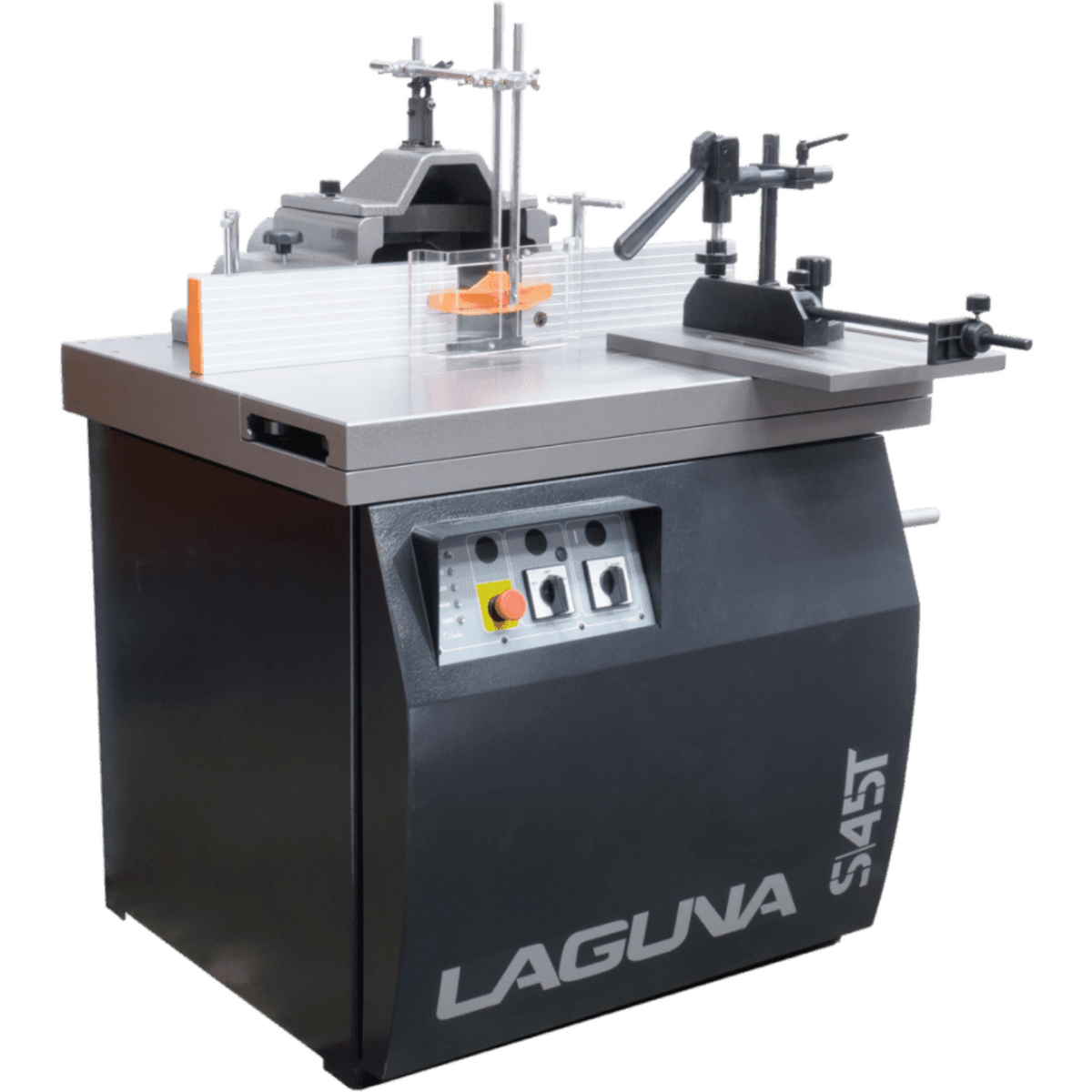

Laguna Tools Industrial Shaper - S|45T - MSHAPS45T-5

$7,276.49 $11,298.00

Laguna Tools Industrial Shaper - S|45T - MSHAPS45T-5

The Laguna S|45T Industrial Shaper was designed to be a heavy duty industrial workhorse for commercial applications. Weighing in at over 1000 lbs. it provides an exceptional value for any pro shop. The combination of dynamic electronically balanced spindle with robust solid castings makes the S45T run extremely smooth with absolute minimum vibration.

The versatile 45° backward & 10° forward tilting spindle makes using a feeder much easier & keeps the cutting action close to the cast table rather than shaping from the top. Oversized cast table pre-drilled to accept most feeders & featuring sliding table with tenoning as standard. Complete with table & hold down clamp. The sliding table has a full 30” stroke from miter fence to center of spindle. Miter gauge adjusts +/- 45° The interchangeable spindle comes standard as 1-¼″, but other sizes including router collets are available. The fence is made from heavy cast iron & easily adjusts w micro-adjusters for both in/out feed. LED lights display the desired RPM. The S45T is available in both 1 phase & 3 phase. Other voltages also available upon request.

Features

Motor: 5HP 1 Phase or 7.5HP 3 Phase
Spindle Tilt: 45° Backwards, 10° Forward
Sliding Table: 10-1/4″ x 39″
Sliding Table Stroke: 18-3/4″
Main Table Incl. S/T: 39-1/2″ x 31-5/8″
Tenoning Table:13-3/4″ x 18-1/2″

Specifications

Hold Down Clamp: Included
Tenoning Table Adjustment: 7″ Slide To Spindle
Sliding Table Stroke: 19″ Right of Spindle
Sliding Table Stroke: 19″ Left of Spindle
Sliding Table Far Right: 30″ Spindle To Miter Gauge
Table Height: 35-⅜″
Capacity Under Nut: 5″/125mm
Spindle Stroke: 7″/180mm
Spindle: 1-¼″ Interchangeable
Max Tooling Diameter: 8-¼″/210mm Under Table
Max Tooling Diameter: 13″/335mm Above Table
Rotation: Forward/Reverse
Fence: Micro Adjust, Cast Body
Speeds: 3000/4000/6000/8000/10000 RPM
Readout: LED Lights For Speeds
Readout: Mechanical Tilt & Spindle Height
Feeder: Pre-drilled Left Back Corner
Router Collet: Accepts, Not Included
CAS Components
Weight (Net/Ship): 1056/1350 lbs
Shipping Dimensions (L x W x H): 49″ x 45″ x 50″

Manual

Industrial S|45T Shaper Manual

Video

What Our Experts Think

Balanced Industrial Build: The S|45T’s heavy cast-iron construction and electronically balanced spindle deliver smooth, low-vibration shaping ideal for high-precision woodworking.
Tilt-Spindle Versatility: With 45° backward and 10° forward tilt, it supports advanced profiles and feeder integration with ease.
Large Sliding Table & Tenoning Carriage: Generous dimensions (10-1/4″ × 39″ table, 18-3/4″ travel) enhance workflow and repeatable accuracy.
Speed Flexibility: Multiple spindle speeds (3,000 to 10,000 RPM) ensure clean results on various materials.
Pro Shop Ready: Available in 5 HP single-phase and 7.5 HP three-phase models, it’s ideal for demanding production work.

Q&A

Q: What spindle tilt does the S|45T offer?
A: 45° backward tilt and 10° forward tilt for enhanced shaping and feeder compatibility.

Q: What are the sliding table dimensions and stroke?
A: The sliding table measures 10-1/4″ × 39″ with an 18-3/4″ stroke.

Q: What motor options are available?
A: Offered in 5 HP single-phase or 7.5 HP three-phase configurations.

Q: What spindle speeds does the machine support?
A: Speed range from 3,000 RPM to 10,000 RPM allows versatile cutter and material use.

Maintenance Tips

Clean Table & Carriage Regularly: Remove dust and debris after each use to maintain smooth motion.
Check Spindle Draw-Bar & Nut: Ensure the keyed washer and draw-bar nut are secured before each operation.
Lubricate Moving Components: Follow routine lubrication for bearings, slideways, and tilt mechanisms.
Inspect Belts & Electrical System: Check for wear, tension, and proper alignment regularly.
Maintain Dust Extraction: Keep the dust port and fence assembly clear for optimal performance and safety.
