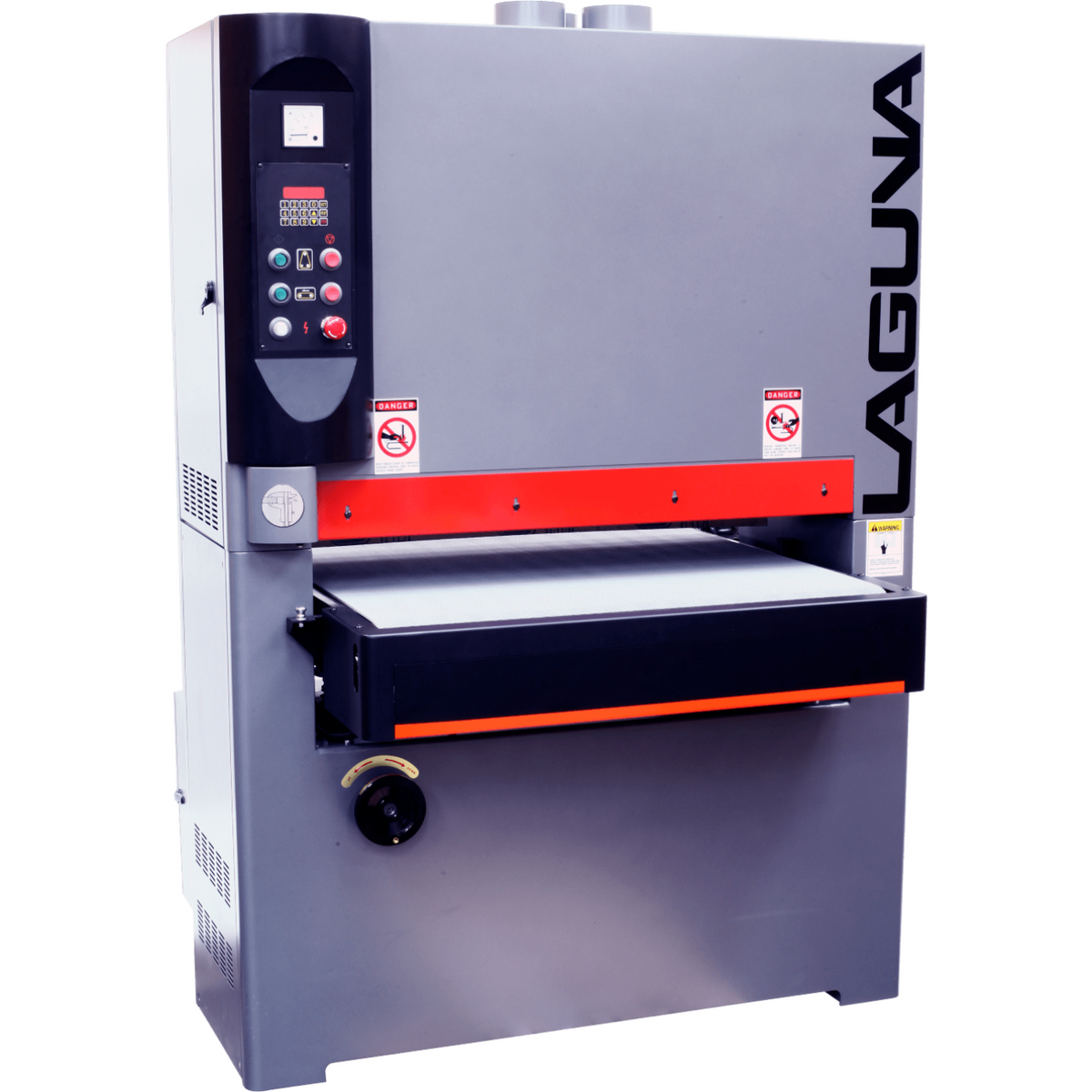

Laguna Tools Industrial Wood Widebelt Sander, Pro 37" - MSANWB37X75-1K-20-0197
Laguna Tools Industrial Wood Widebelt Sander, Pro 37" - MSANWB37X75-1K-20-0197
Laguna Tools Industrial Wood Widebelt Sander, Pro 37" - MSANWB37X75-1K-20-0197
This machine is equipped with 1 combination head. This means you can sand either using the drum or the sanding platen or both at the same time. Due to the large HP motor (20 HP) the machine is capable of dimensioning even wide boards. This is important for customers who do not own a thickness planer. When you use the machine to dimension your work only very aggressive paper 60 or 80 grit should be used. The heavy carpet feed belt is powered by a separate 1HP motor and has a variable speed conveyor of 12-60 FPM.
Features
- Single Drum
- Main Motor: 20HP
- Variable Feed Motor : 1HP
- Table Lifting Motor: 0.25HP
- Capacity: 37″
- Belt Length: 75″
Additonal Details
- Manual hand-wheel on the bottom of the machine
- By pressing the up or down arrow the table will move in desired direction
- By tapping these same arrows the machine will move an exact amount each tap
The auto thickness gauge will measure your wood piece and automatically set the table to the thickness of the piece of wood inserted
Specifications
- Max Sanding Width: 36-½″ (927mm)
- Sanding Belt Size: 37″ x 75″ (940mm x 1905mm)
- Adjustable Sanding Platen: 3″ (76mm)
- Diameter of Sanding Drum: 4″ (101mm)
- Length of Sanding Drum: 37″ (965mm)
- Sanding Drum RPM: 1725
- Variable Conveyor Speed: 12 – 60 fpm
- Dust Port Size: 4″ (101mm)
- Number of Dust Ports: 3
- Footprint: 19″ x 51″ (483mm x 1300mm)
- Width x Depth: 56-½″ x 51″ (483mm x 1300mm)
- Height With Dust Collection Ports: 77-½″ (1968mm)
- Height Without Dust Collection Ports: 71-½″ (1816mm)
- Conveyor Height At Lowest Setting: 32″ (813mm)
- Cabinet: Steel
- Operating Air Pressure: 6 Bar
- Sanding Belt Oscillation: Adjustable
- Sanding Belt Motor Brake: Yes. Air Operated Disc Brake
- CSA: Fully Certified
- Net Weight: 1980 lbs
Manual
What Our Experts Think
-
Heavy-Duty Performance: The Laguna Tools Industrial Wood Widebelt Sander, Pro 37" - MSANWB37X75-1K-20-0197 is built for precision and power with a strong 20 HP motor.
-
Perfect Finishing: Delivers smooth, even sanding across large panels up to 37 inches wide, ideal for professional woodworking shops.
-
Smart Controls: Variable feed speed and digital thickness settings ensure consistent, repeatable results.
-
Industrial Build: Rigid steel frame and reliable conveyor system provide long-term durability and stability.
Q&A
Q: What is the maximum sanding width?
A: It handles material up to 37 inches wide for large panel work.
Q: What type of motor does it use?
A: A 20 HP main motor with variable conveyor speed for fine control.
Q: What belt size does it support?
A: Uses a 37" x 75" sanding belt, easy to replace and adjust.
Q: Does it support dust collection?
A: Yes, it includes multiple 4-inch dust ports for efficient extraction.
Maintenance Tips
-
Clean belts regularly: Remove dust and resin buildup to maintain finish quality.
-
Check conveyor alignment: Adjust tracking to prevent belt drift.
-
Inspect sanding belt tension: Keep consistent pressure for uniform sanding.
-
Lubricate moving parts: Apply oil to lift screws and tension arms as needed.
-
Maintain dust system: Keep ports and hoses clear for maximum suction.
