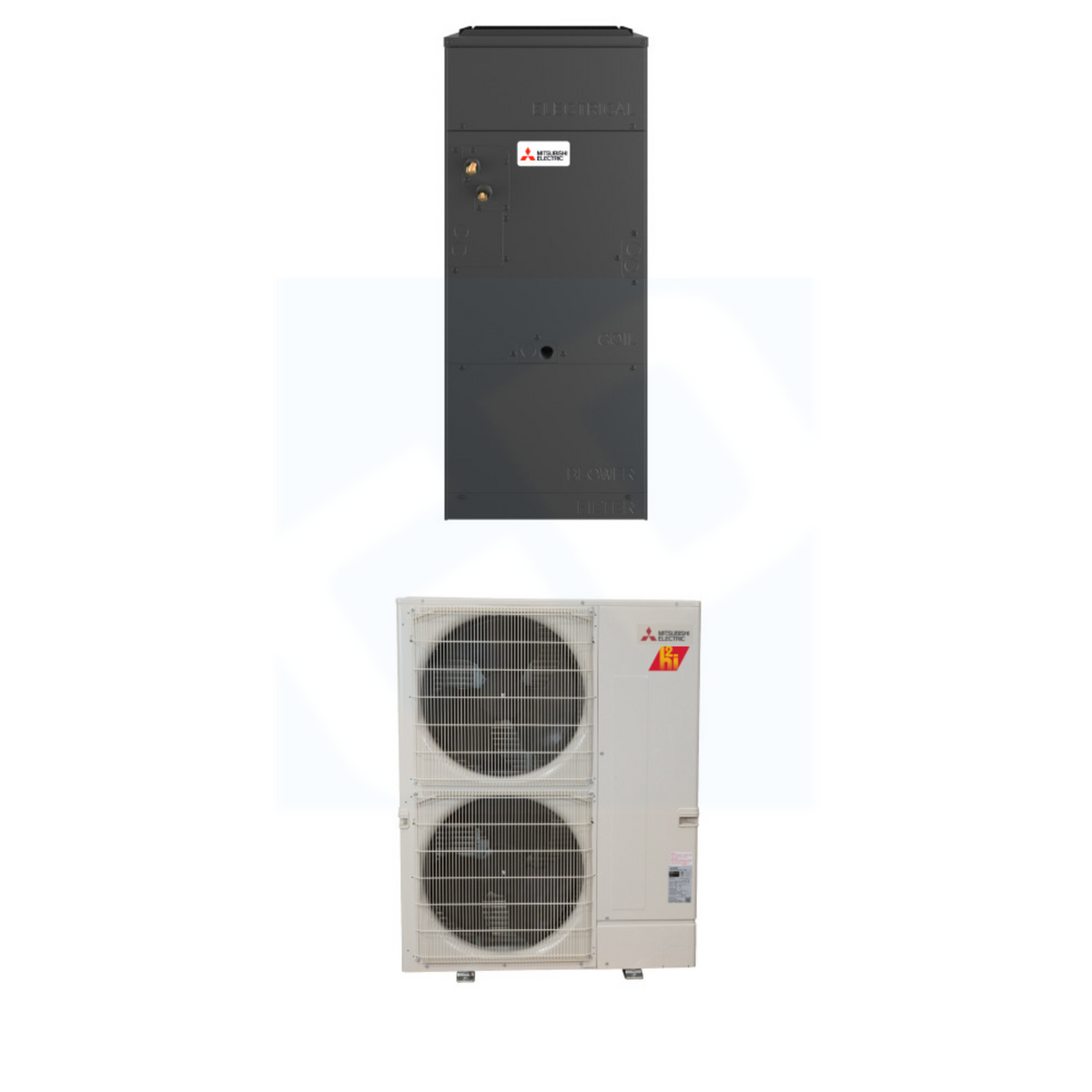

Mitsubishi Electric SVZ-AP60NL & SUZ-AK60NL 60,000 BTU 17 SEER2 Multi Position Air Handler Heat Pump System - R454B - SVZAP60NL/SUZAK60NL

Mitsubishi Electric SVZ-AP60NL & SUZ-AK60NL 60,000 BTU 17 SEER2 Multi Position Air Handler Heat Pump System - R454B - SVZAP60NL/SUZAK60NL

The Mitsubishi SVZ-AP60NL & SUZ-AK60NL is a high-capacity 60,000 BTU ducted heat pump system designed to provide efficient, year-round comfort for large residential spaces and light commercial applications. Featuring an INVERTER-driven compressor, Joint Lap DC Motor, and Pulse Amplitude Modulation technology, this system delivers precise capacity control, enhanced reliability, and optimized energy efficiency even under demanding conditions.

The SVZ-AP60NL indoor air handler offers multi-position installation flexibility, selectable static pressure, and a unique blow-through design for easier coil maintenance. Fiberglass-free insulation improves efficiency and reduces condensation, while the positive pressure cabinet ensures air leakage remains under 1% at 1.0 in.WG.

The SUZ-AK60NL outdoor unit is equipped with Blue Fin anti-corrosion coating for long-term durability, high-performance grooved piping for superior heat exchange, and Hot-Start Technology to eliminate cold air drafts at startup. Built for quiet operation, it maintains indoor and outdoor sound levels comparable to normal conversation while providing reliable single-zone climate control.

General Information

System Type: Ducted Air Handler with Heat Pump Outdoor Unit
Model Numbers: Indoor – SVZ-AP60NL / Outdoor – SUZ-AK60NL
Capacity: 60,000 BTU Cooling / 66,500 BTU Heating (Rated at 47°F)
Room Size: Large homes, multi-zone setups, or light commercial buildings
Operating Mode: Heating & Cooling
Refrigerant: R-454B

Features

INVERTER-Driven Compressor
Provides precise temperature control with efficient, reliable performance.

Multi-Position Installation
Configurable for horizontal (left/right) or vertical (upflow/downflow) setups. CMA-1 kit recommended for downflow condensate management.

Quiet Operation
Indoor unit operates at 48–56 dB(A), outdoor unit at 60–62 dB(A), ensuring minimal disruption.

Durable Outdoor Design
Blue Fin anti-corrosion protection, reverse-cycle defrost, and grooved piping improve longevity and efficiency.

Energy Efficient
SEER2 17.0, EER2 9.0, HSPF2 (Region IV) 8.0, with COP up to 2.9 at 47°F. Delivers reliable heating even at subzero temperatures down to -4°F.

Advanced Control Options
Compatible with Mitsubishi Comfort App, wired and wireless controllers, third-party thermostat interfaces, humidifier, and ERV integration.

Positive Pressure Cabinet & Static Pressure Control
Selectable static pressure (0.30, 0.50, 0.80 in.WG) with less than 1% air leakage, maximizing efficiency and airflow customization.

Unique Blow-Through Design
Simplifies coil cleaning and routine maintenance when the blower is removed.

Included Components
Indoor Unit: SVZ-AP60NL
Outdoor Unit: SUZ-AK60NL
Optional Accessories: Electric heat kits, wired and wireless controllers, humidifier and ERV control, condensate pumps, mounting accessories.

Ideal For
Homeowners and businesses seeking a large-capacity ducted heat pump solution. The SVZ-AP60NL & SUZ-AK60NL pairing offers efficient performance, flexible installation, and reliable comfort for expansive residential or light commercial environments.

What Our Experts Think

• 60,000 BTU multi-position ducted heat pump ideal for large residential and light-commercial spaces.

• INVERTER-driven compressor with Joint Lap DC Motor and Pulse Amplitude Modulation technology ensures precise capacity control.

• High-efficiency 17 SEER2 rating reduces energy costs while maintaining year-round comfort.

• Multi-position air handler allows flexible horizontal or vertical duct installation.

• Uses eco-friendly R454B refrigerant for environmentally responsible performance.

Q&A

• Q: What size area is suitable for this system?
  A: Ideal for large residential spaces and light-commercial applications.

• Q: Can it maintain efficiency under demanding conditions?
  A: Yes, advanced motor and compressor technologies optimize energy use and reliability.

• Q: What installation options are available?
  A: Multi-position air handler supports flexible horizontal or vertical duct setups.

• Q: What refrigerant does it use?
  A: R454B, a low-GWP, environmentally friendly refrigerant.

Maintenance Tips

• Clean or replace filters monthly to maintain airflow and efficiency.

• Schedule annual professional maintenance for refrigerant and system performance.

• Keep outdoor unit clear of debris for optimal operation.

• Inspect ductwork and connections periodically for leaks.

• Ensure condensate lines remain clear to prevent water damage.
