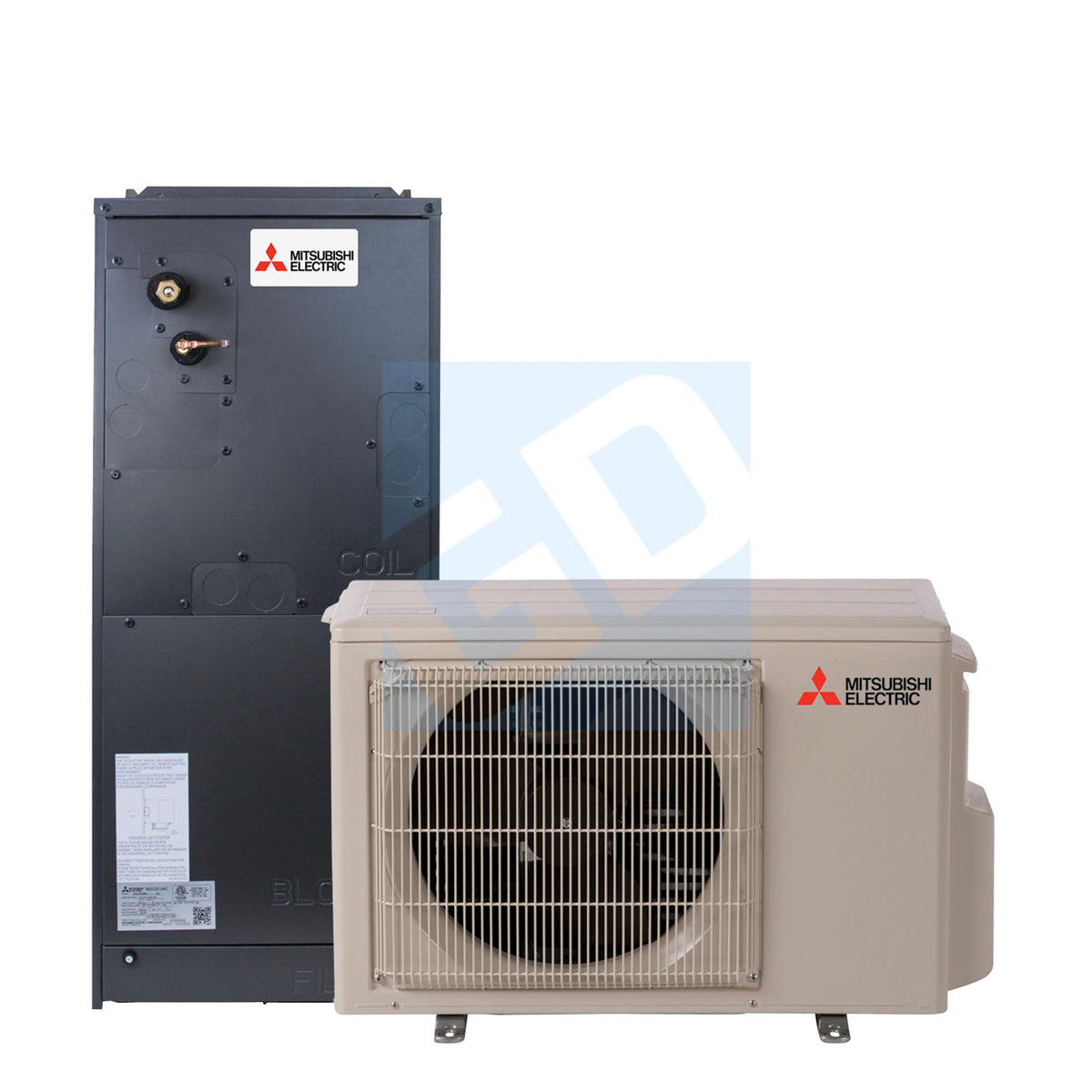

Mitsubishi KP 12,000 BTU 20.7 SEER Standard Multi-Position Air Handler Heat Pump System - KA12NA/SVZ-KP12NA

Mitsubishi KP 12,000 BTU 20.7 SEER Standard Multi-Position Air Handler Heat Pump System - KA12NA/SVZ-KP12NA

Features

• Unit Type Multi-Position Air Handler
• Product Line M-Series (KP)
• Operating Mode Cooling & Heating
• Low Ambient Heat No
• Number of Zones 1
• Unit Size 12,000 BTU
• Line Set Size 1/4" x 3/8"
• Required Install Kit IKIT1438
• WiFi Enabled Yes with Kumo Cloud
• WiFi Built In No
• Indoor Unit SVZ-KP12NA
• Outdoor Unit SUZ-KP12NA

• Cooling Capacity 12,000 BTU
• Heating Capacity up to 16,700 BTU
• SEER2 20.7
• EER2 12.7
• HSPF2 10.5
• Heating Minimum Temp -5 F
• Cooling Minimum Temp 14 F
• Room Cooling/Heating Capacity up to 550 sq ft
• Energy Star Yes
• ETL Listed Yes
• AHRI Certified Yes

What Our Experts Think

• 12,000 BTU single-zone system ideal for small to medium spaces.

• High-efficiency 20.7 SEER rating reduces energy costs while maintaining comfort.

• Multi-position air handler supports flexible installation (upflow, downflow, horizontal).

• Quiet operation makes it suitable for bedrooms, offices, or small living areas.

• Uses eco-friendly refrigerant for environmentally responsible performance.

Q&A

• Q: What size room is suitable for this system?
  A: Ideal for spaces up to ~600–700 sq ft.

• Q: Can it handle both heating and cooling?
  A: Yes, designed for year-round climate control.

• Q: What installation options are available?
  A: Multi-position air handler fits upflow, downflow, or horizontal orientations.

• Q: Is it quiet enough for residential use?
  A: Yes, designed for minimal noise during operation.

Maintenance Tips

• Clean or replace filters monthly to maintain airflow.

• Schedule yearly professional maintenance for refrigerant and system checks.

• Keep outdoor units free of debris.

• Inspect ductwork and connections periodically for leaks.

• Ensure condensate lines remain clear to prevent water damage.
