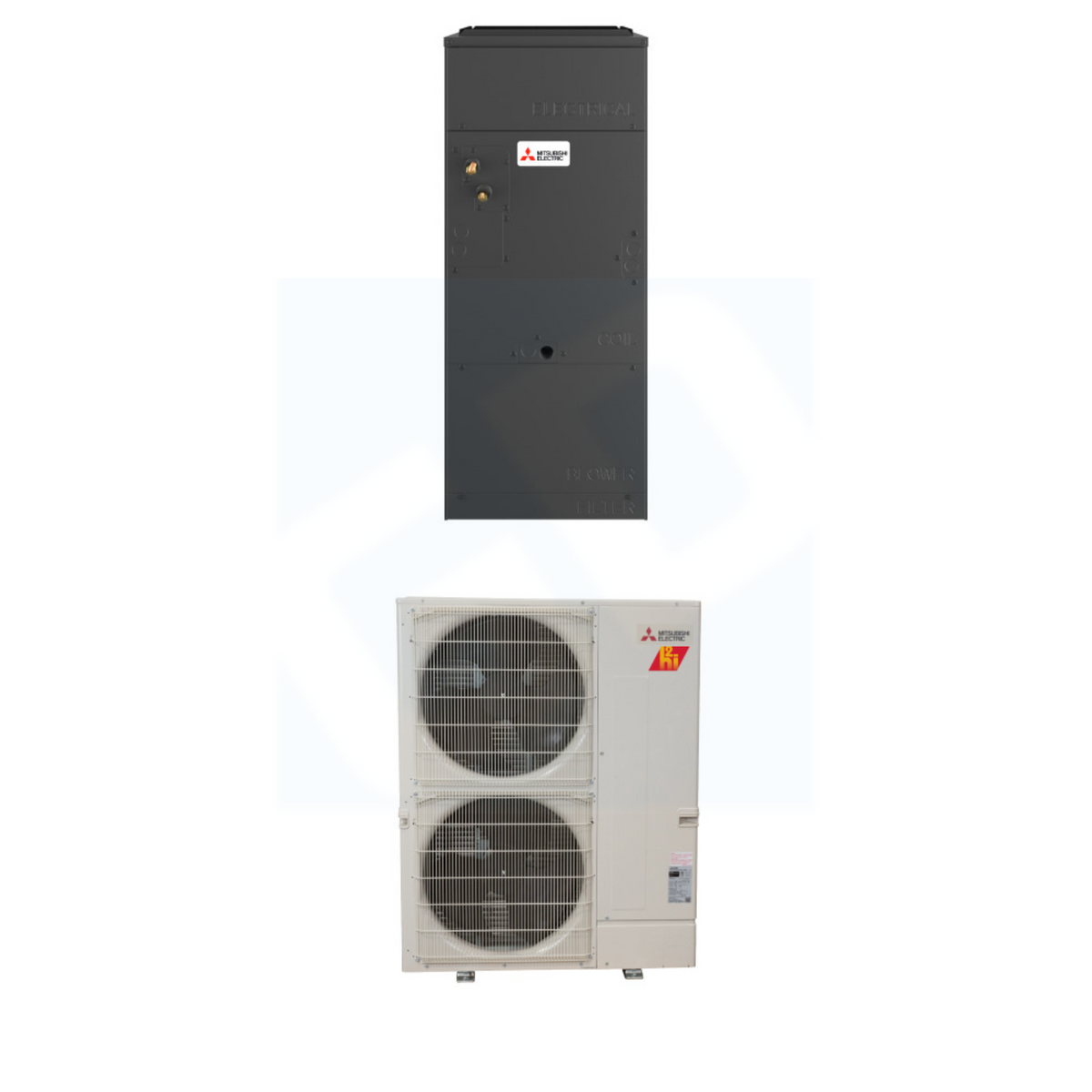

Mitsubishi PVA-AA24NL & PUZ-AK24NLHZ 24,000 BTU 19.7 SEER2 Multi-Position Air Handler Hyper Heat System - R454B - PVAAA24NL/PUZAK24NLHZ

Mitsubishi PVA-AA24NL & PUZ-AK24NLHZ 24,000 BTU 19.7 SEER2 Multi-Position Air Handler Hyper Heat System - R454B - PVAAA24NL/PUZAK24NLHZ

The Mitsubishi PVA-AA24NL indoor air handler paired with the PUZ-AK24NLHZ outdoor unit delivers 24,000 BTU of efficient heating and cooling for single-zone spaces up to approximately 1,000 sq ft. Designed for flexible installation, the multi-position indoor unit supports upflow, downflow, and horizontal orientations, suitable for attics, closets, or mechanical rooms.

Featuring an INVERTER-driven compressor and eco-friendly R-454B refrigerant, this ENERGY STAR®-certified system provides precise temperature control and energy-efficient operation. The PUZ-AK24NLHZ condenser offers extended low-ambient heating down to –13 °F and cooling to 0 °F, enhanced by Blue Fin corrosion-resistant coating for durability in coastal and harsh environments.

Quiet operation, smart control compatibility, and optional electric heat kits complete this versatile ducted heat pump system.

Features

• INVERTER-Driven Compressor: Efficient, responsive heating and cooling modulation

• Multi-Position Air Handler: Supports horizontal, upflow, or downflow installation

• Selectable External Static Pressure: 0.30, 0.50, or 0.80 in.WG

• Extended Low-Ambient Capability: Operates down to 0 °F cooling and –13 °F heating

• Blue Fin Coil Protection: Durable corrosion resistance for coastal environments

• Quiet Operation: Indoor sound levels as low as 31 dB(A)

• Smart Control Ready: Compatible with wired/wireless remotes, third-party thermostats, and Mitsubishi Comfort App (adapter required)

• Optional Electric Heat Kit and ERV/Humidifier Terminals

What Our Experts Think

• 24,000 BTU single-zone system perfect for spaces up to ~1,000 sq ft.

• Hyper-Heating technology ensures efficient performance in cold climates.

• Multi-position air handler supports upflow, downflow, and horizontal installations.

• Ideal for residential or light-commercial spaces requiring year-round comfort.

• Uses eco-friendly R454B refrigerant for lower environmental impact.

Q&A

• Q: What size room can this system handle?
  A: Suitable for areas up to ~1,000 sq ft.

• Q: Can it operate efficiently in winter?
  A: Yes, Hyper-Heating technology maintains reliable warmth in cold conditions.

• Q: What installation options are available?
  A: Upflow, downflow, or horizontal, fitting attics, closets, or mechanical rooms.

• Q: What refrigerant is used?
  A: R454B, a low-GWP, environmentally friendly option.

Maintenance Tips

• Inspect and clean filters monthly to maintain airflow.

• Schedule yearly professional maintenance for refrigerant levels and system efficiency.

• Keep outdoor units free of debris for optimal operation.

• Check ductwork and connections for leaks periodically.

• Ensure condensate lines remain clear to prevent water damage.
